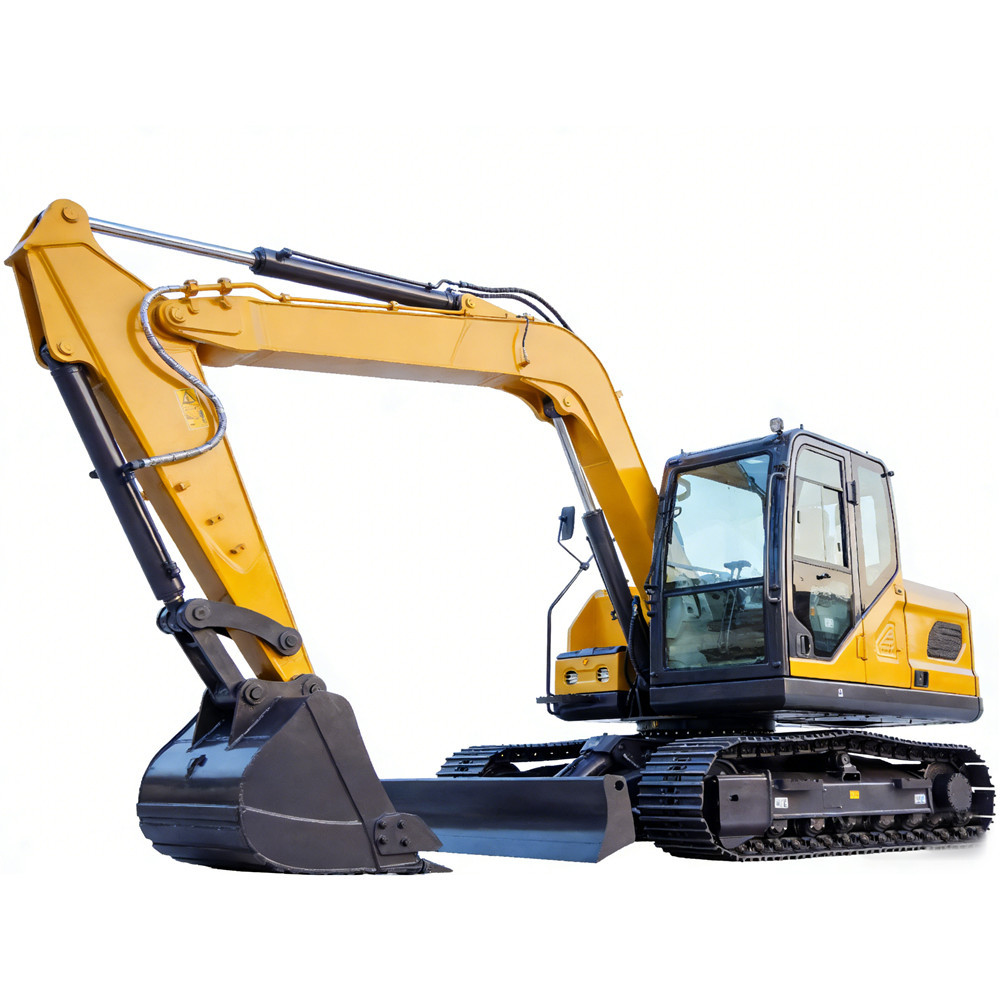

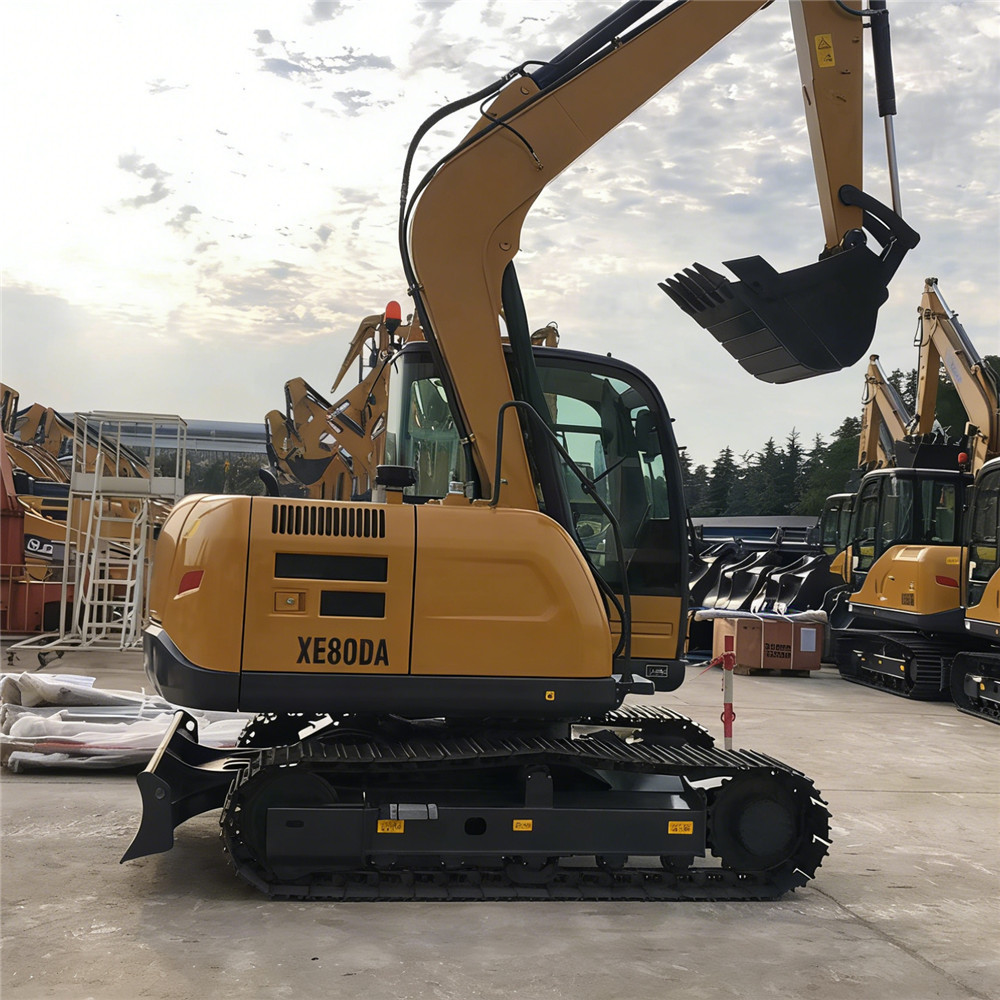

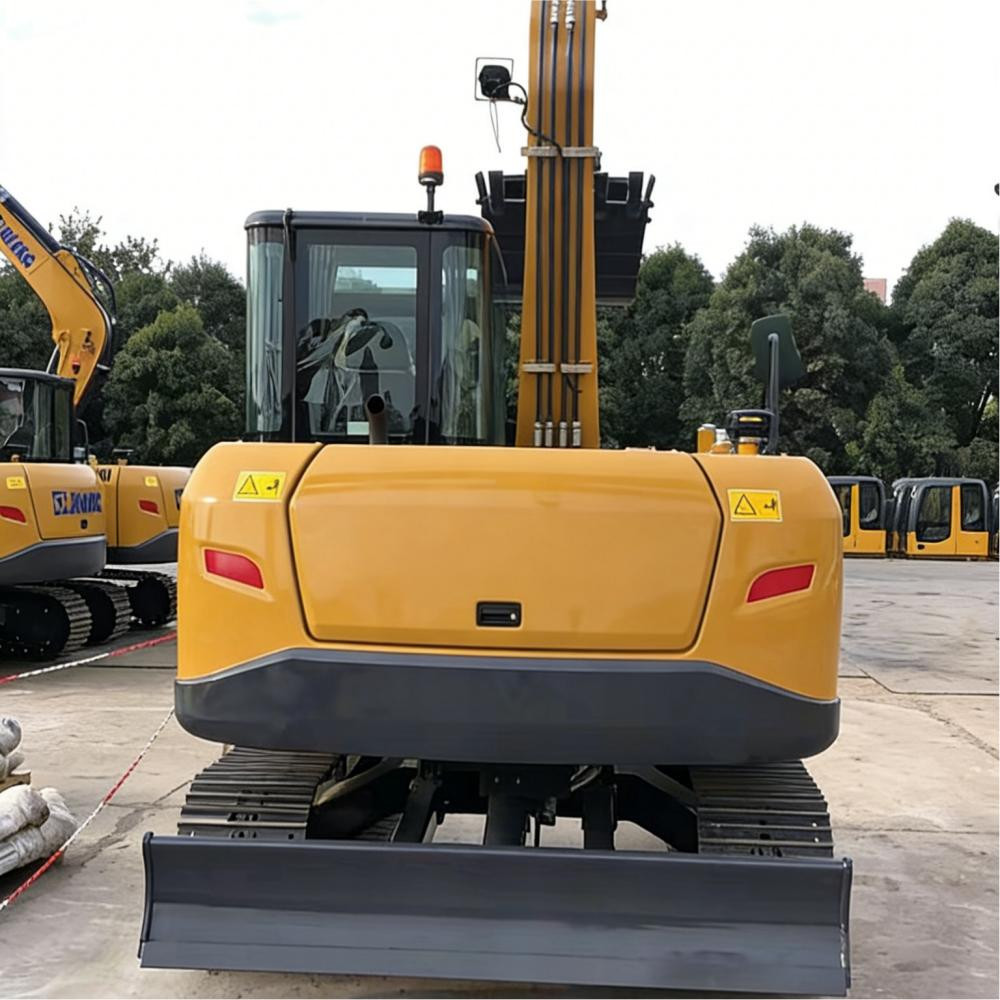

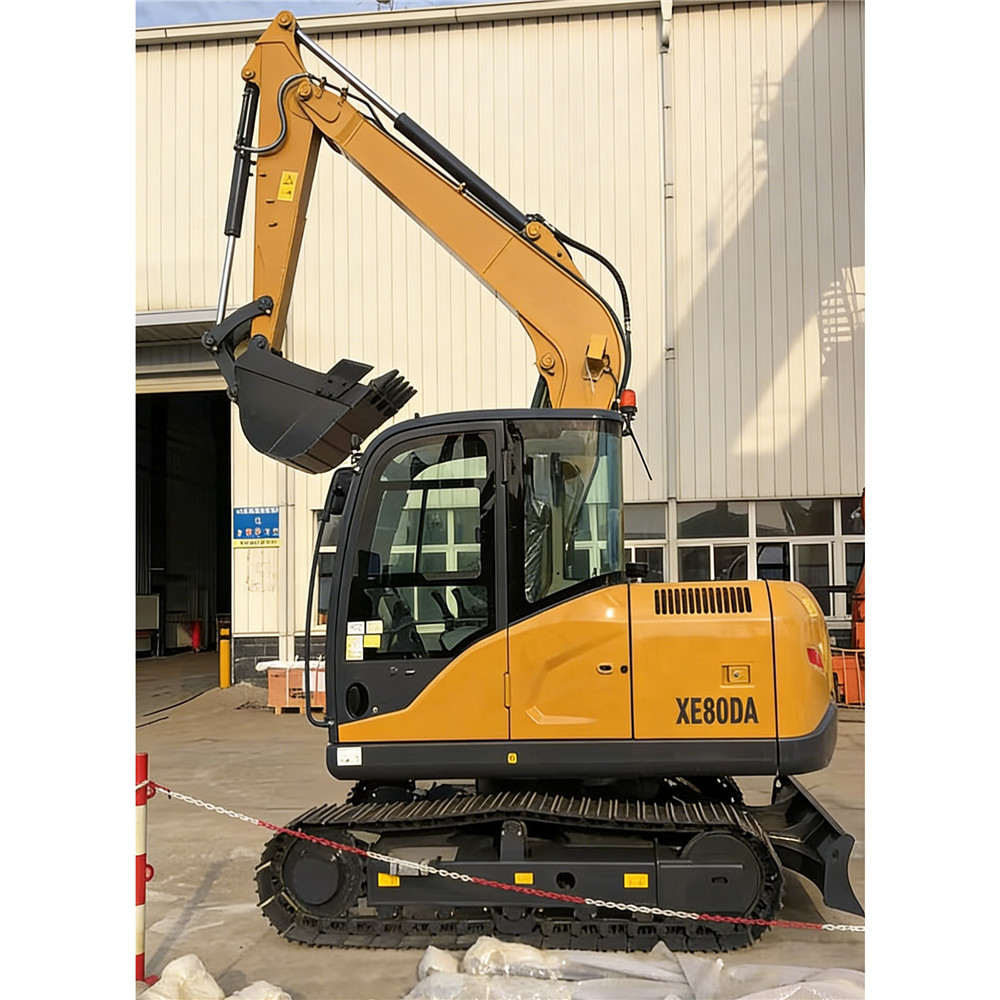

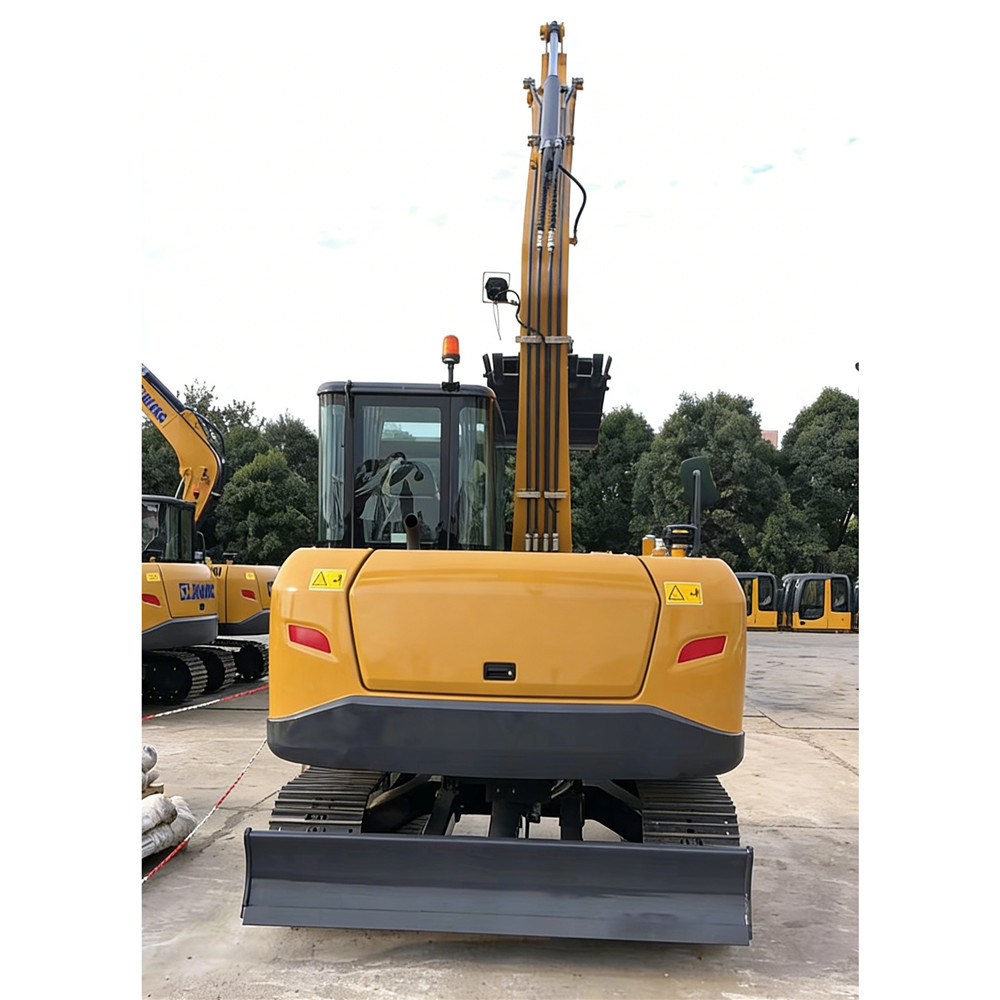

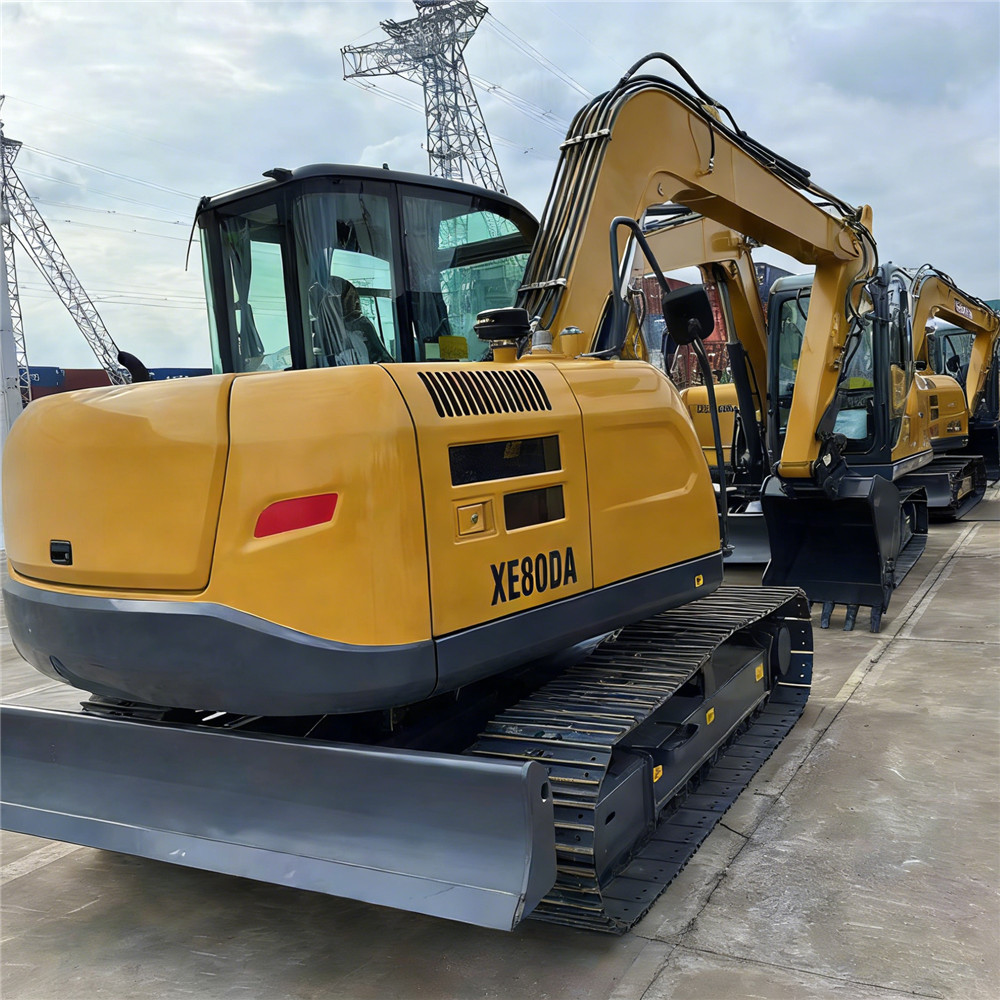

XE80G
Customized engine with fast response.
Operating weight ( kg ) : 7730
Bucket capacity ( m³ ) : 0.35
Rated power ( kW ) : 46.3
* Widely used in hydro power, transportation, municipal engineering, landscaping, farmland renovation, and oil pipeline constructions.
* The low-speed and high torque engine, combined with a large displacement electronic control main pump and a new second-generation main valve, provides low fuel consumption, efficiency, and reliability.
* Car level NVH optimization, ergonomic design, surround sun blinds, automatic AC with standard fresh air system, eye tracking analysis simulation, provide an comfortable operating experience.
* Newly upgraded hydraulic system with precise flow distribution improves smooth compound operations.
| Item contents | Unit | Parameters |
| Operating weight | kg | 7730 |
| Engine | ||
| Engine brand/model | 4TNV98 | |
| Rated power/rpm | kW/rpm | 46.3/2000 |
| Direct injection | ||
| 4-stroke | ||
| Water-cooled | ||
| Stroke | mm | 110 |
| Cylinder bore | mm | |
| Number of cylinders | ||
| Maximum torque/rpm | N·m/rpm | 239.1/1650 |
| Displacement | 3.319 | |
| Main performance | ||
| Travel speed (high/low) | km/h | 4.3/2.5 |
| Swing speed | r/min | |
| Maximum swing torque | kN·m | |
| Gradeability | 35°（ 70%） | |
| Ground specific pressure | kPa | 33.5 |
| Bucket digging force (ISO) | kN | |
| Arm digging force (ISO) | kN | |
| Maximum traction force | kN | 68.3 |
| Working range | ||
| L1Maximum digging reach | mm | 6260 |
| L2Maximum digging reach at GRP | mm | 6070 |
| L3Maximum digging height | mm | 7085 |
| L4Maximum unloading height | mm | 5160 |
| L5Minimum unloading height | mm | 2476 |
| L68 ft. level floor digging depth | mm | 3628 |
| L7Maximum digging depth | mm | 2960 |
| L8Maximum vertical digging depth | mm | 4020 |
| L9Minimum swing radius | mm | 1818 |
| L10Maximum lifting height of dozer blade | mm | 440 |
| L11Maximum cutting depth of dozer blade | mm | 44 |
| Track | ||
| Standard track shoes width | mm | 450 |
| Number of track shoes (per side) | - | 39 |
| Number of track roller (per side) | - | 5 |
| Number of track carrier roller (per side) | - | 1 |
| Standard | ||
| Length of boom | mm | 3720 |
| Length of arm | mm | 1622 |
| Bucket capacity | m³ | 0.35 |
