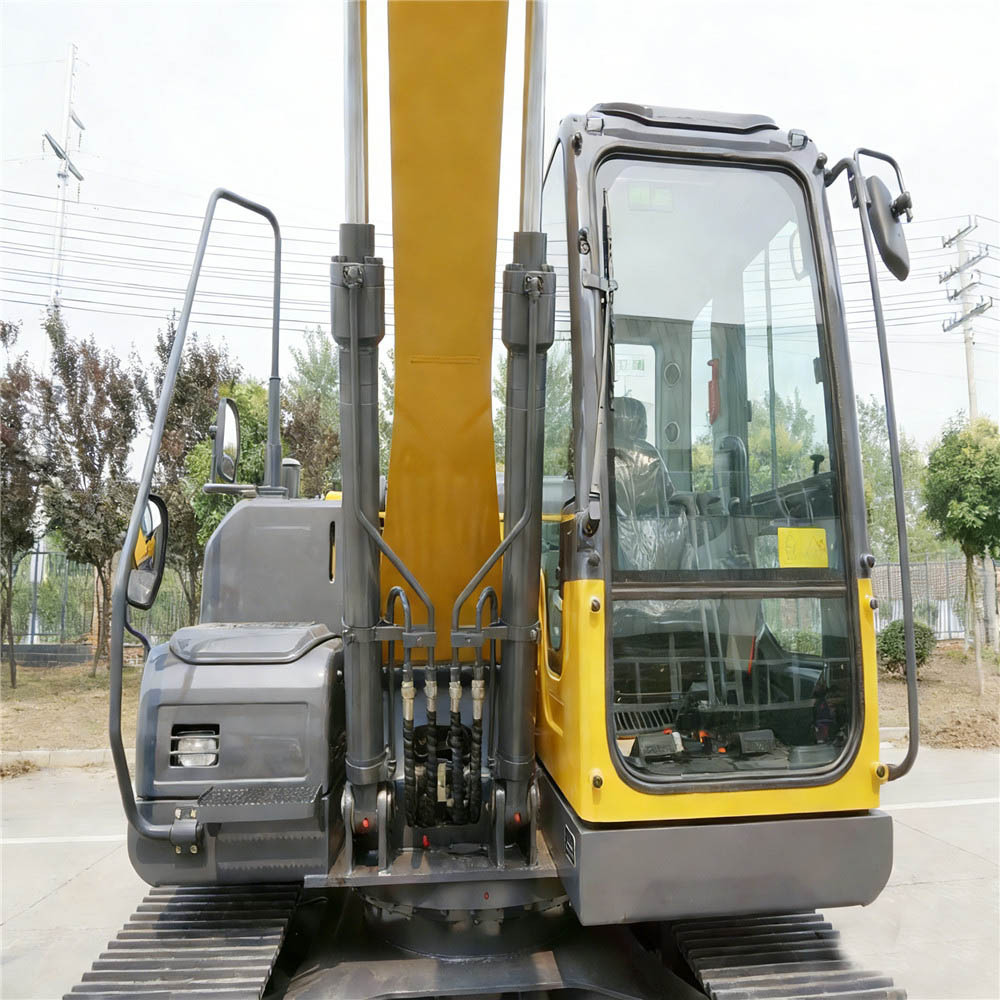

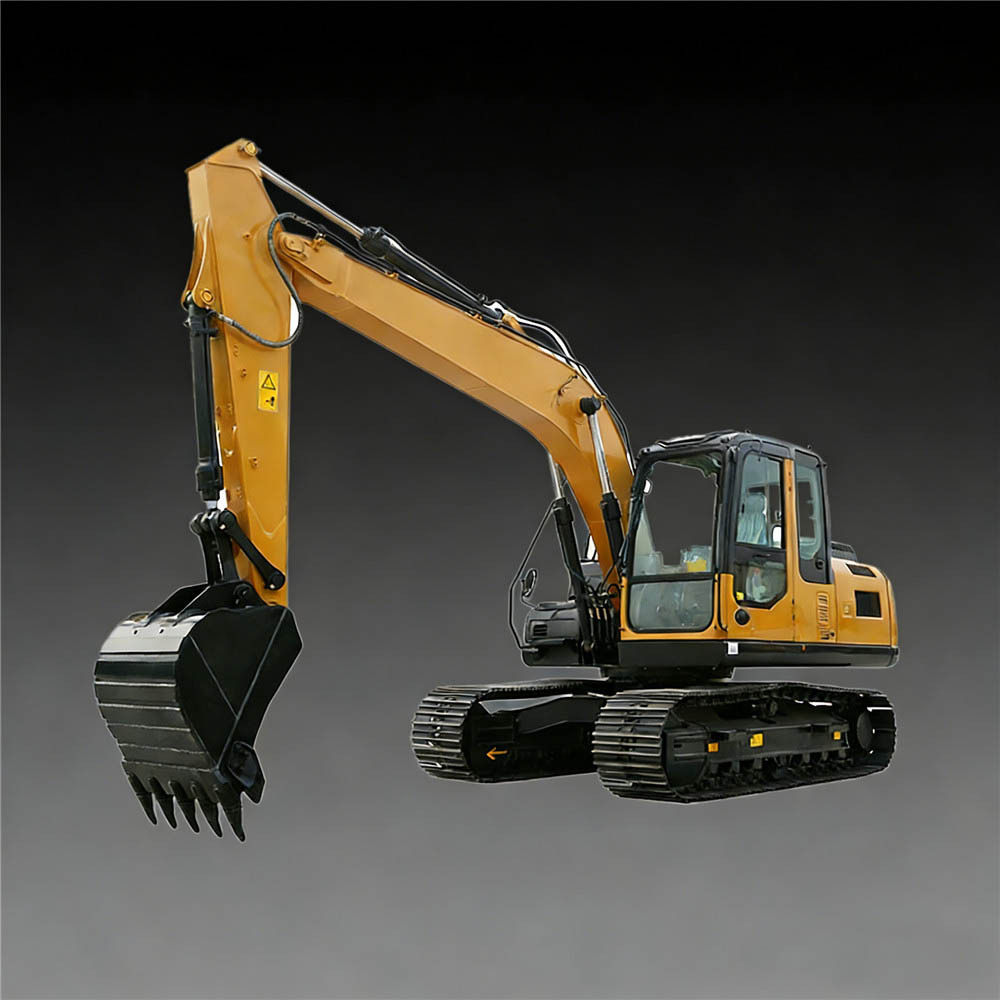

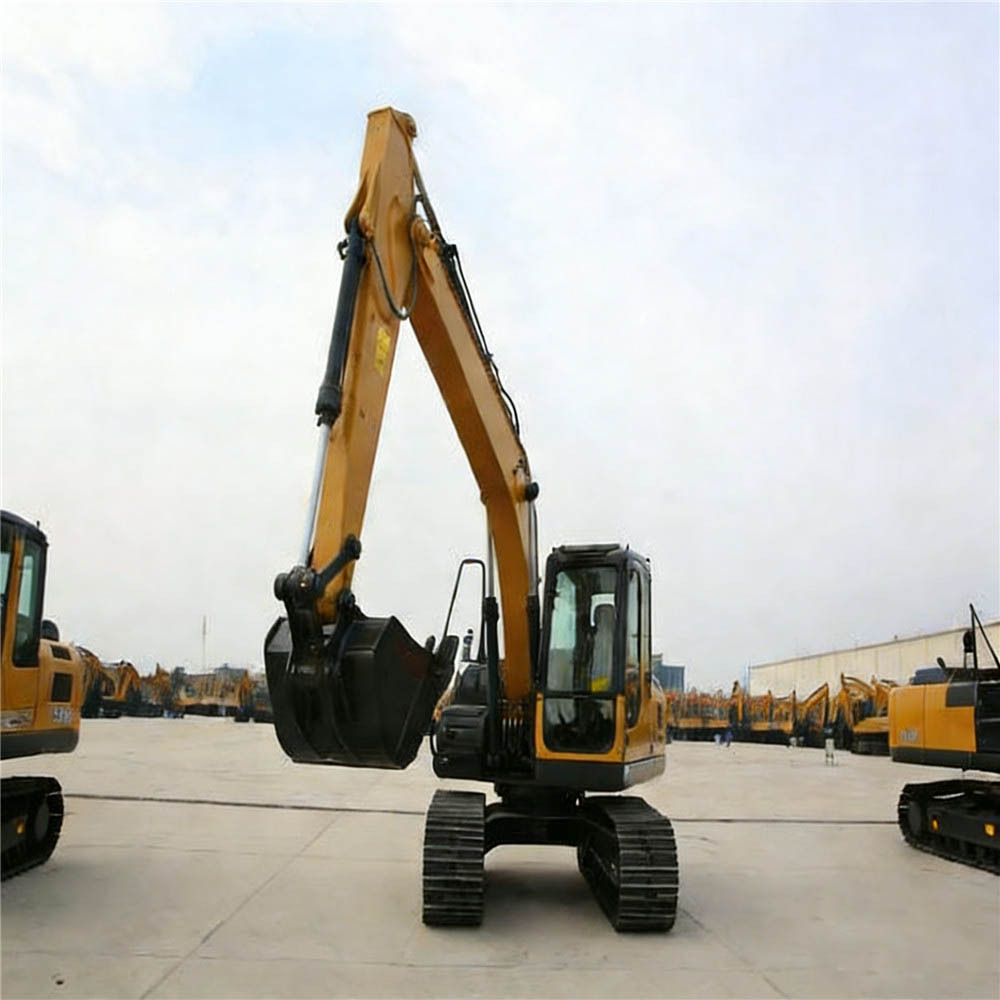

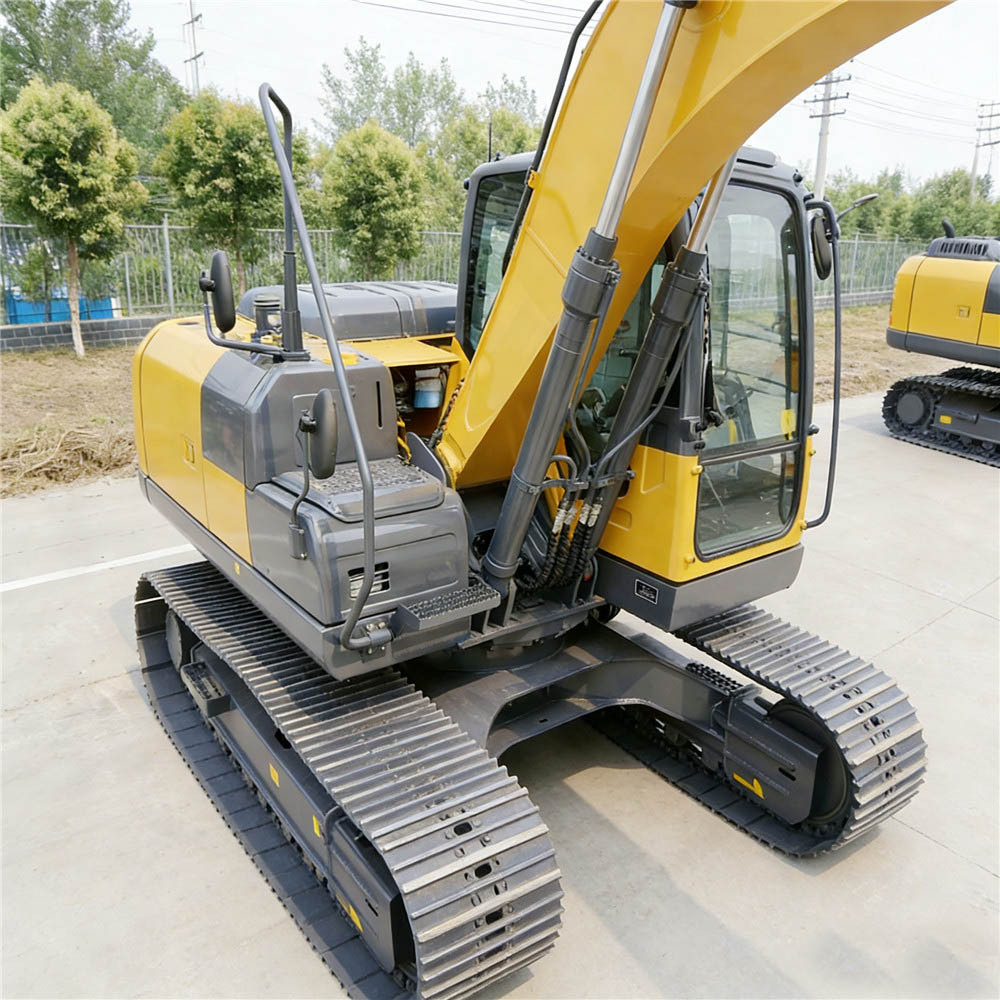

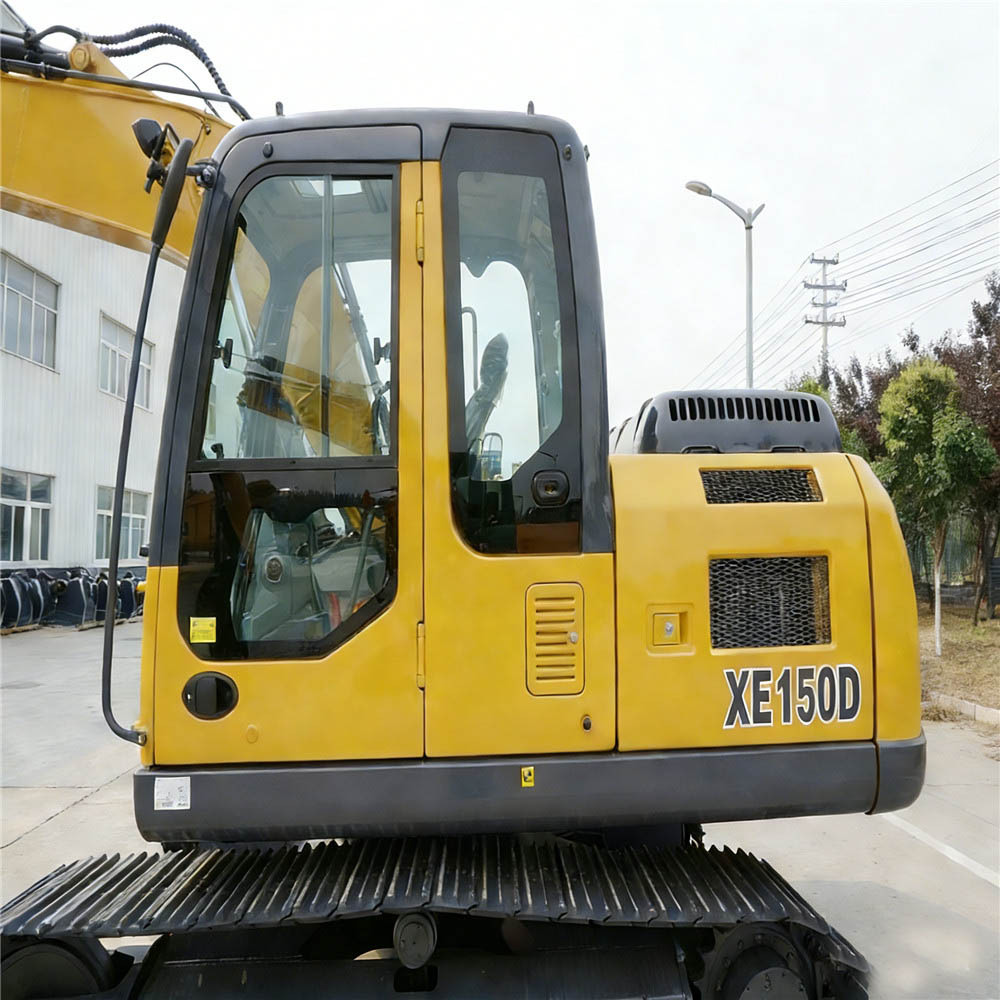

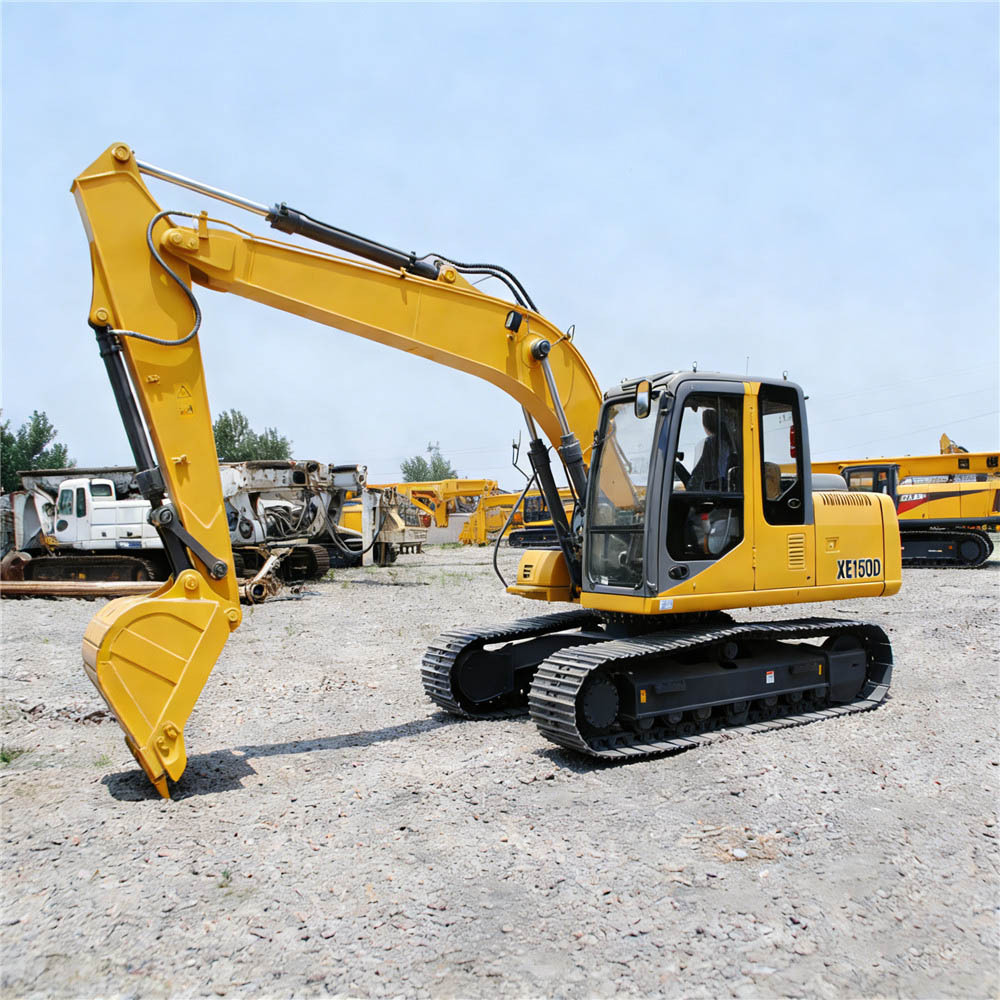

Excavator XE150D
Main parameters:
Bucket capacity 0.61CBM (standard)
Operating weight:14400kgs
Max digging height:8641mm
Max digging reach: 8296mm
Main configuration
CUMMINS 4BTAA3.9 engine, 85.4/2200 kw/rpm
Hydraulic system
Shock absorber
Optional parts:
Breaker / Fast change devices
XE150D is the most popular model of China 15t excavator for sale ,Now XE150D is upgrading to new model XE150D equipped with EURO III engine with electric injector, new model will have high performance. OUR SERVICE
* Warranty: We supply one year warranty for all the machines we exported, during the warranty, if there is problem caused by machine quality without improper operation, we will supply the replace genuine parts by DHL to clients freely to keep the machine in high efficiency work.
* Spare Parts: We have 7years experience on machine and spare parts supplying, we are efforts to supply Genuine brand spare parts with good prices, quick response and professional service.
| Model | Unit | XE150D | |
| Operating weight | kg | 14400 | |
| Standard bucket capacity | m³ | 0.61 | |
| Engine | Engine Model | / | CUMMINS 4BTAA3.9 |
| Direct injection | / | √ | |
| Four strokes | / | √ | |
| Water cooling | / | √ | |
| Turbo charged | / | √ | |
| Air to air intercooler | / | √ | |
| No. of cylinders | / | 4 | |
| Rated power/speed | kw/rpm | 85.4/2200 | |
| Max. torque/speed | N.m | 447/1500 | |
| Displacement | L | 3.927 | |
| The main performance | Travel speed | km/h | 5.2/3.4 |
| Swing speed | r/min | 12.3 | |
| Max. gradeability | / | ≥35 | |
| Ground pressure | kPa | 38 | |
| Max.Bucket digging force | kN | 85 | |
| Max.arm crowd force | kN | 65 | |
| Max.traction force | kN | 135 | |
| Hydraulic system | Main pump | / | 2 |
| Rate flow of main pump | L/min | 2×120 | |
| Max pressure of prime relief valve | MPa | 31.4/34.3 | |
| Max pressure of travel system | MPa | 34.3 | |
| Max pressure of swing system | MPa | 25 | |
| Max pressure of pilot system | MPa | 3.9 | |
| Oil capacity | Fuel tank capacity | L | 250 |
| Hydraulic tank capacity | L | 130 | |
| Engine lubrication | L | 14 | |
| Overall dimensions | A Overall length | mm | 7801 |
| B Overall width | mm | 2590 | |
| C Overall height | mm | 2880 | |
| D Overall width of upperstructure | mm | 2512 | |
| E Track length | mm | 3660 | |
| F Overall width of undercarriage | mm | 2590 | |
| G Crawer width | ㎜ | 600 | |
| H Track length on ground | mm | 2910 | |
| I Crawer gauge | mm | 1990 | |
| J Clearance under counter weight | mm | 964 | |
| K Ground clearance | mm | 478 | |
| L Min.tail swing radius | mm | 2325 | |
| Working range | A Max. digging height | mm | 8641 |
| B Max. dumping height | mm | 6181 | |
| C Max. digging depth | mm | 5538 | |
| D 8inch horizonal digging depth | mm | 5287 | |
| E Max. vertical wall digging depth | mm | 4727 | |
| F Max. digging reach | mm | 8296 | |
| G Min. swing radius | mm | 2335 | |
| Angle of arm deflection | Degree | —— | |
