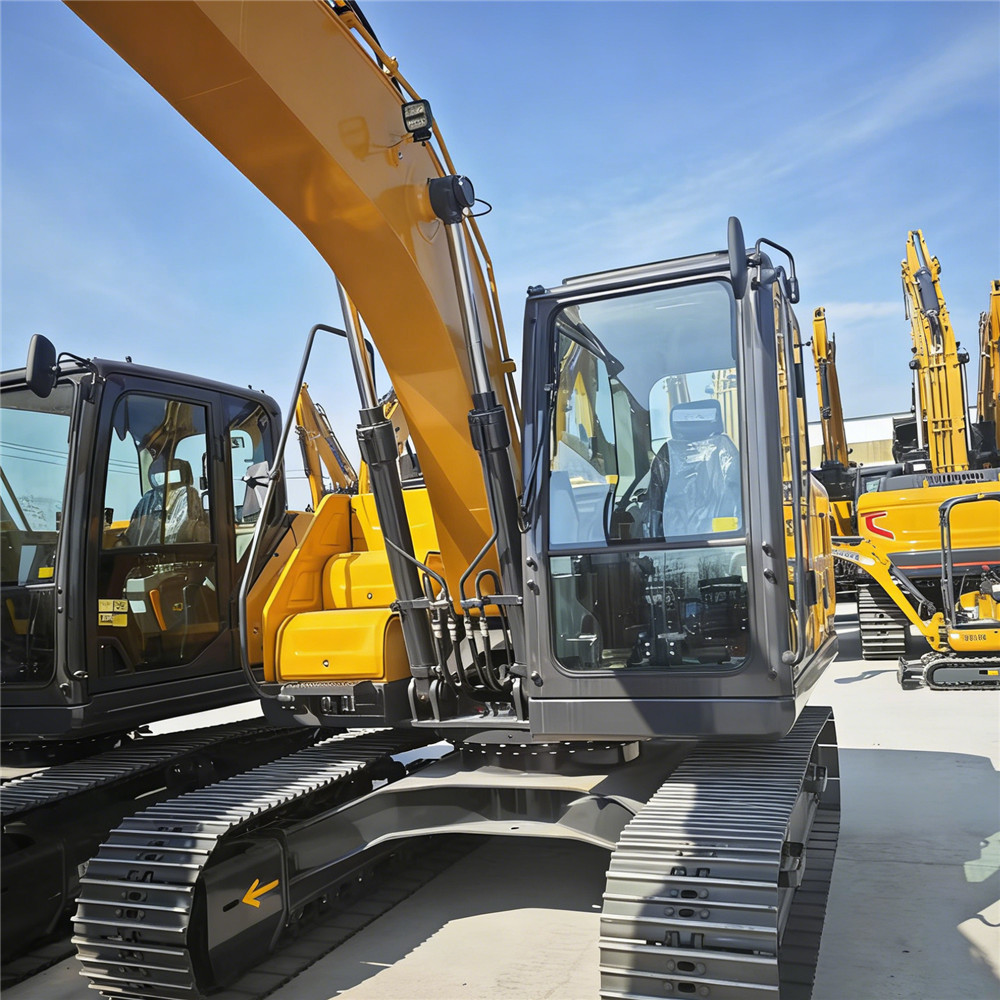

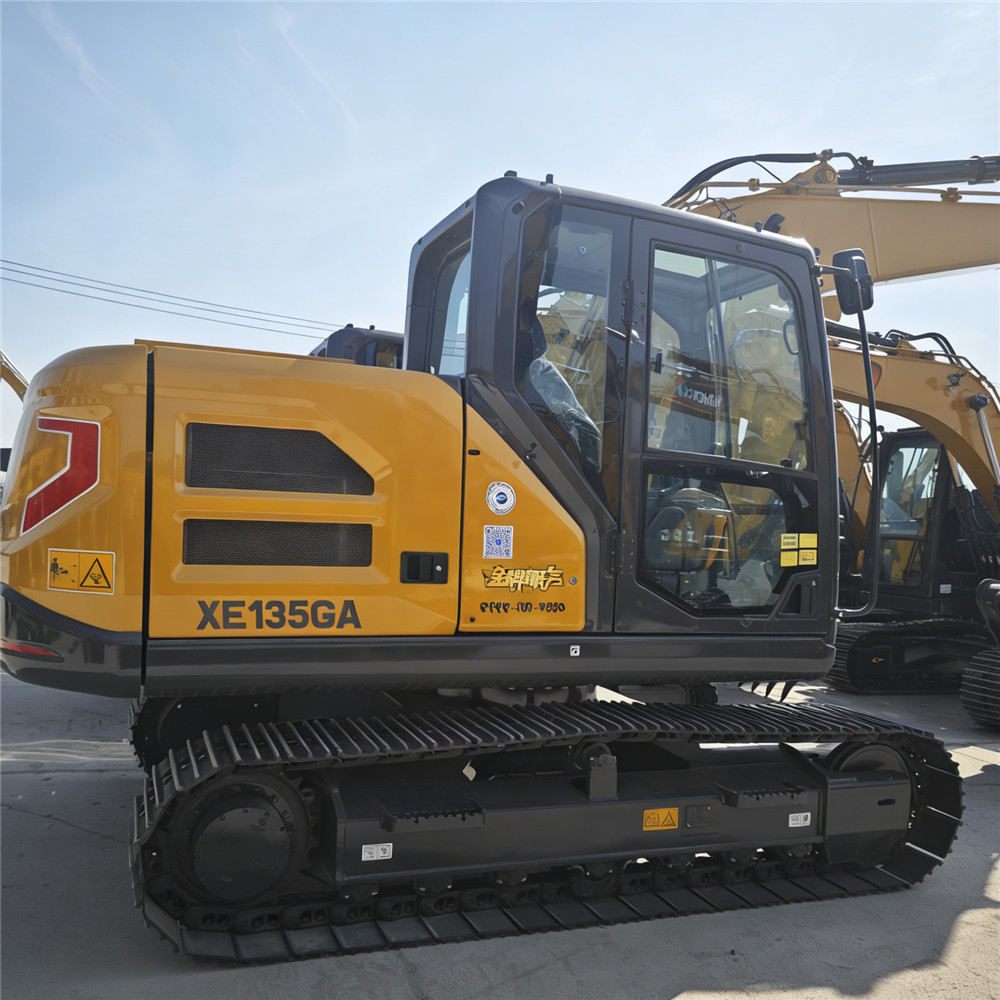

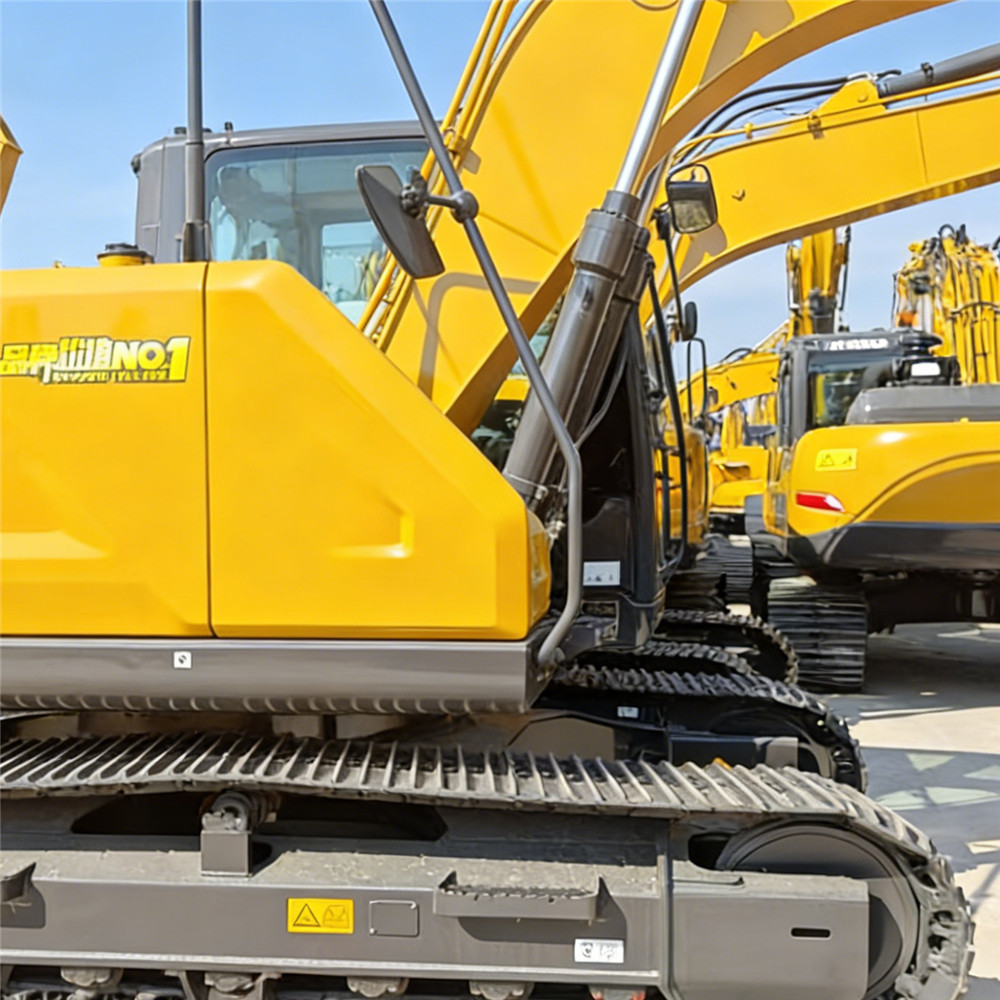

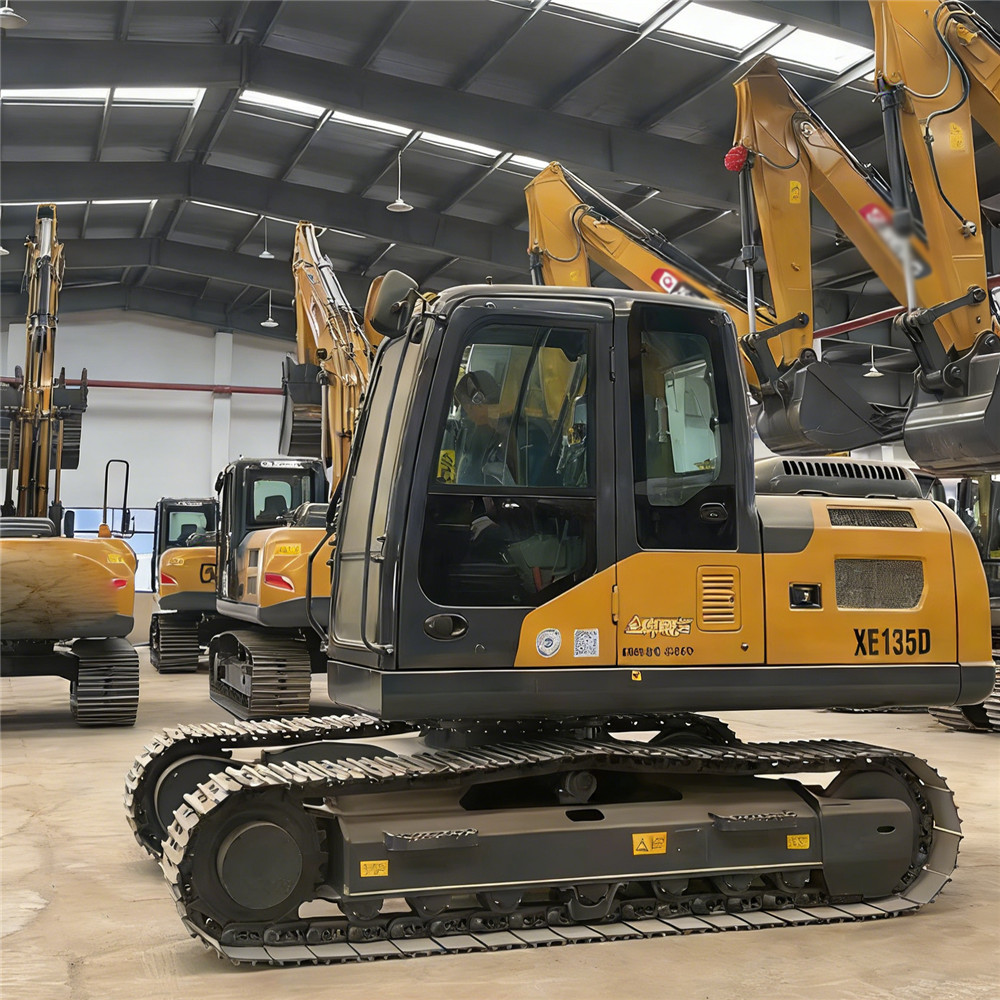

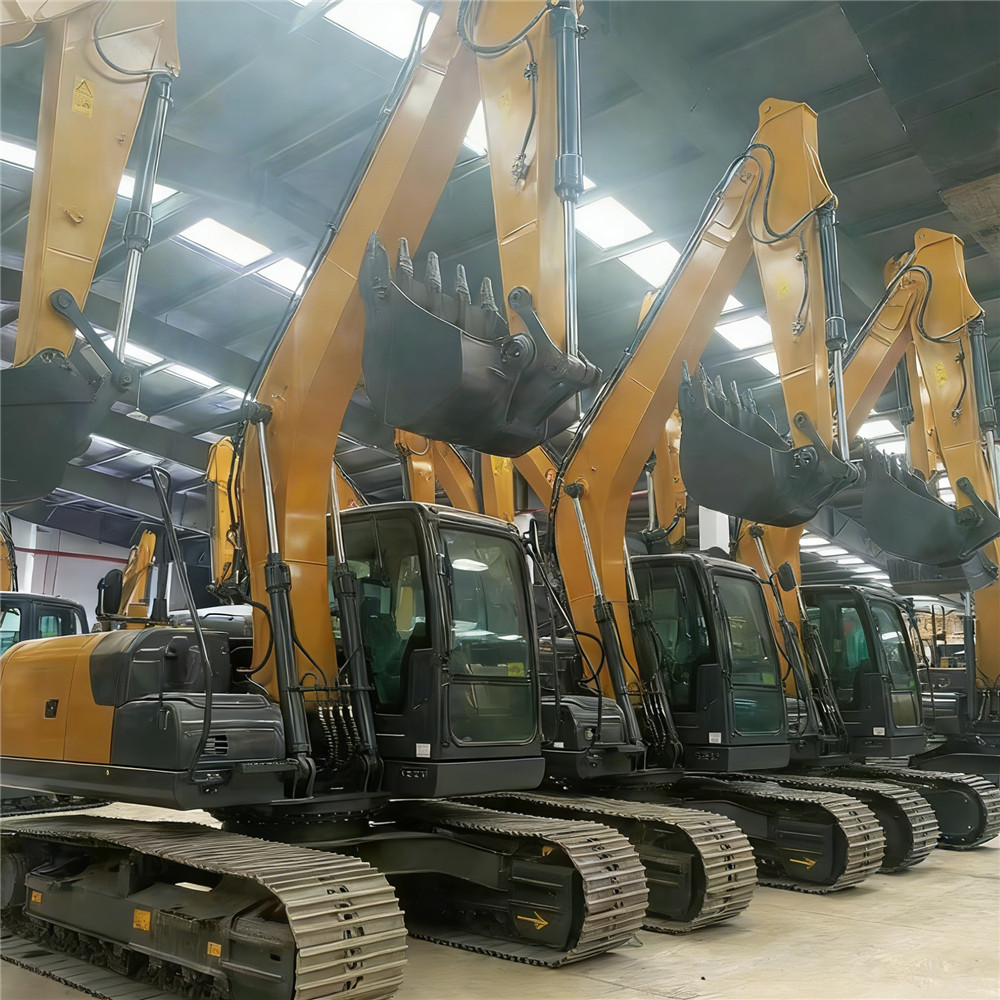

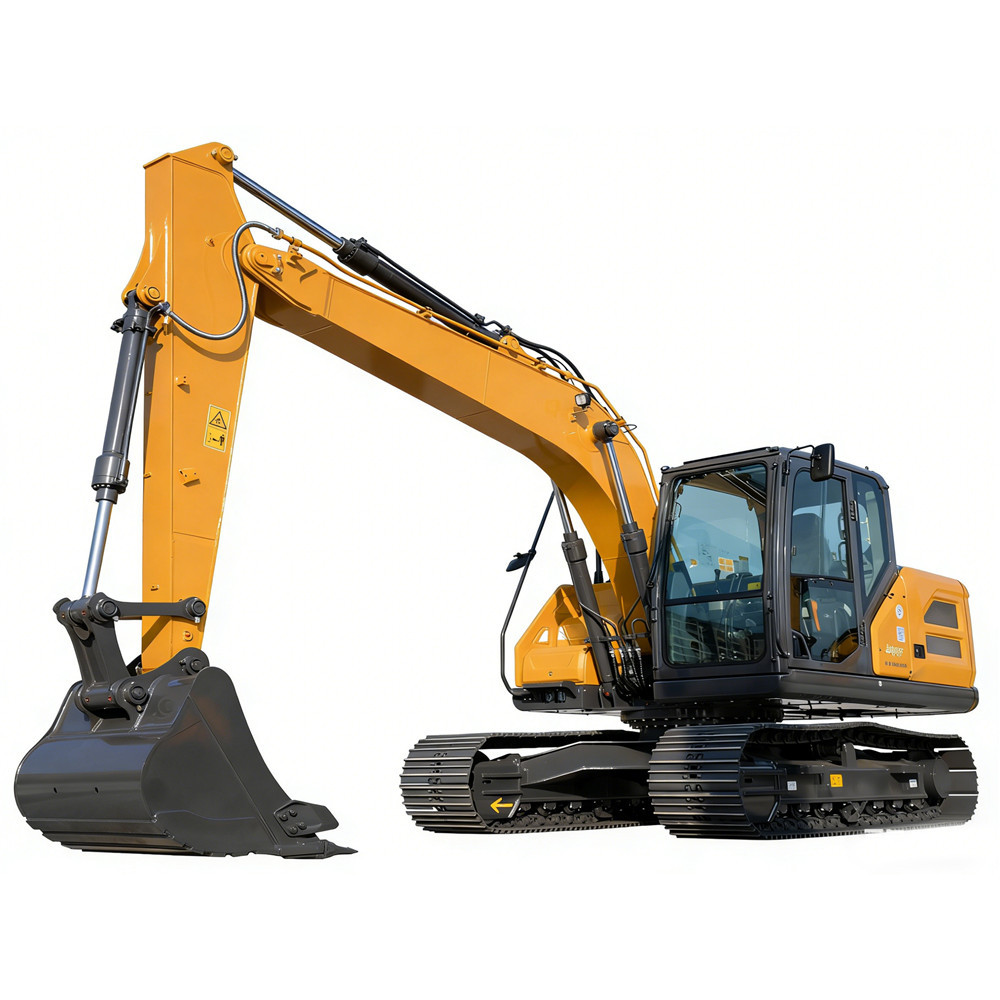

XE135G
Positive pressure cab, comfortable and safe.
Operating weight ( kg ) : 13500
Bucket capacity ( m³ ) : 0.55
Rated power ( kW ) : 72.7
* Widely used for irrigation and water conservancy, river dredging, and municipal Construction
* New Pressurized Cabin, comprehensive improvement in comfort and safety, with high power automatic hot and cold AC system, enlarged suspension seat, 8-inch instrument panel with touch screen.
* New hydraulic system with a 19% increase in main pump displacement. Large-sized Main Valve, the pressure loss is reduced by 3%, and the fuel economy is improved by7%.
* 0.55m³ enhanced bucket provides higher excavation efficiency and further reduces fuel consumption.
| Item contents | Unit | Parameters |
| Operating weight | kg | 13500 |
| Engine | ||
| Engine brand/model | Isuzu/BB-4BG1TRP/Cummins | |
| Rated power/rpm | kW/rpm | 72.7/2200 |
| Direct injection | ||
| 4-stroke | ||
| Water-cooled | ||
| Turbocharged | ||
| Stroke | mm | 125 |
| Cylinder bore | mm | 105 |
| Number of cylinders | ||
| Maximum torque/rpm | N·m/rpm | 337.6/1600 |
| Displacement | 4.329 | |
| Main performance | ||
| Travel speed (high/low) | km/h | 5.0/3.0 |
| Swing speed | r/min | 10.9 |
| Maximum swing torque | kN·m | |
| Gradeability | 35°（70%） | |
| Ground specific pressure | kPa | 41 |
| Bucket digging force (SAE) | kN | |
| Bucket digging force (ISO) | kN | 107 |
| Item contents | Unit | Parameters |
| Arm digging force (ISO) | kN | 74 |
| Maximum traction force | kN | 134 |
| Working range | ||
| L1 Maximum reach | mm | 8310 |
| L2 Maximum reach at GRP | mm | 8155 |
| L3Maximum digging height | mm | 8640 |
| L4Maximum unloading height | mm | 6155 |
| L58 ft. level floor digging depth | mm | 5335 |
| L6Maximum vertical digging depth | mm | 4605 |
| L7Maximum digging depth | mm | 5555 |
| L8Minimum swing radius | mm | 2475 |
| Track | ||
| Standard track shoes width | mm | 500 |
| Number of track shoes (per side) | - | 44 |
| Number of track roller (per side) | - | 7 |
| Number of track carrier roller (per side) | - | 1 |
| Standard | ||
| Length of boom | mm | 4600 |
| Length of arm | mm | 2520 |
| Bucket capacity | m³ | 0.5 |
| Optional | ||
| Bucket capacity | 0.33/0.43/0.61 | |
