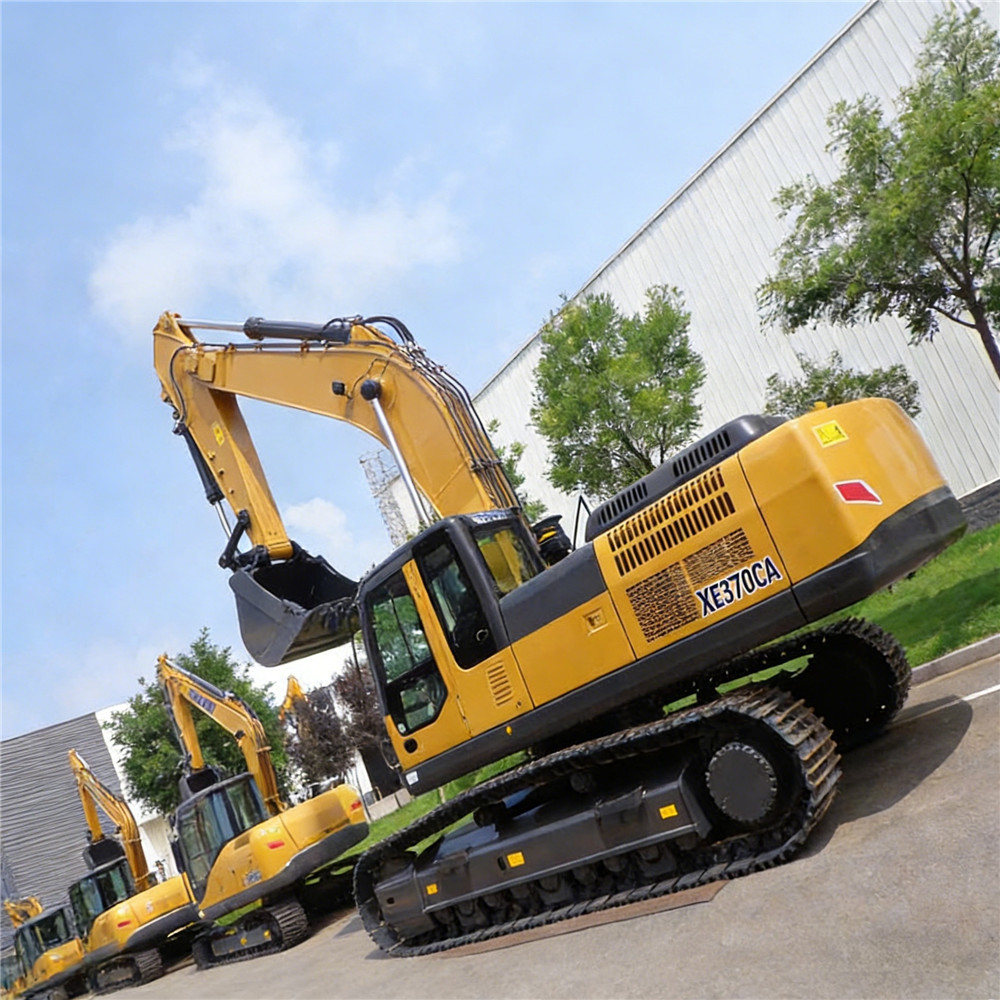

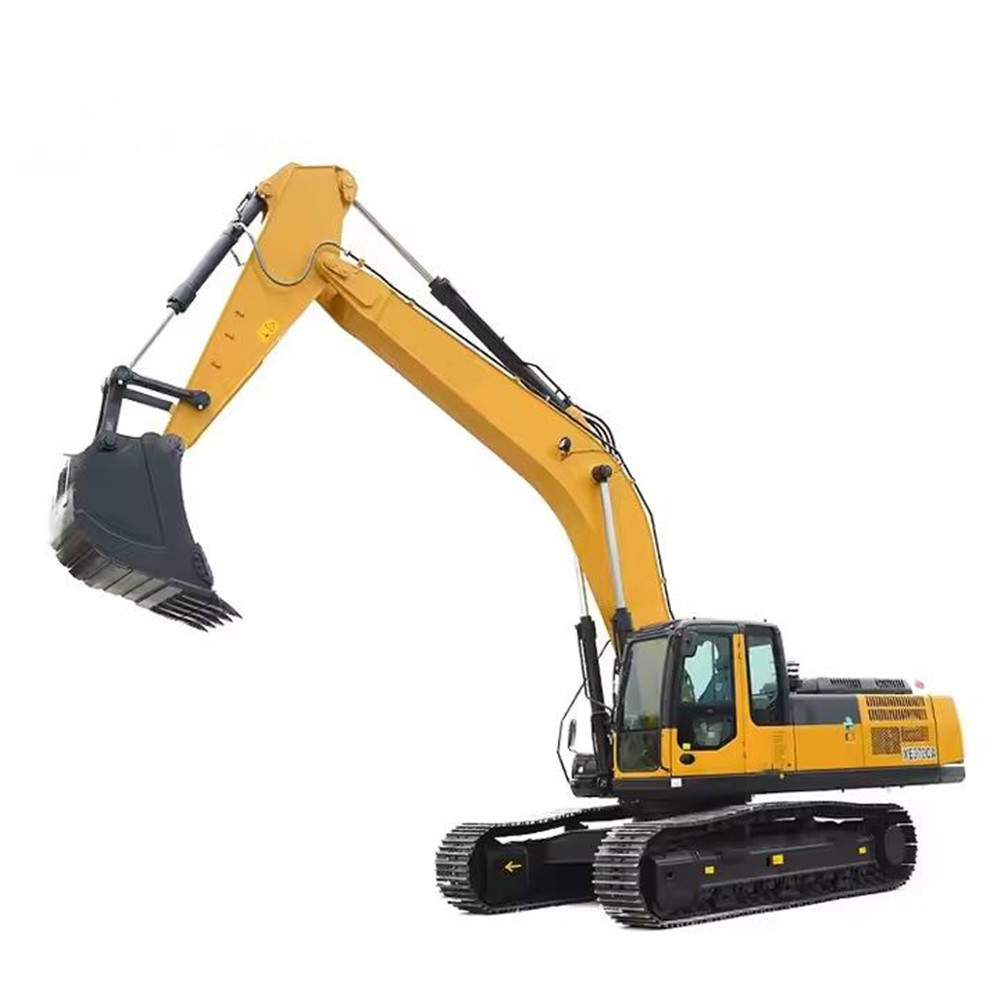

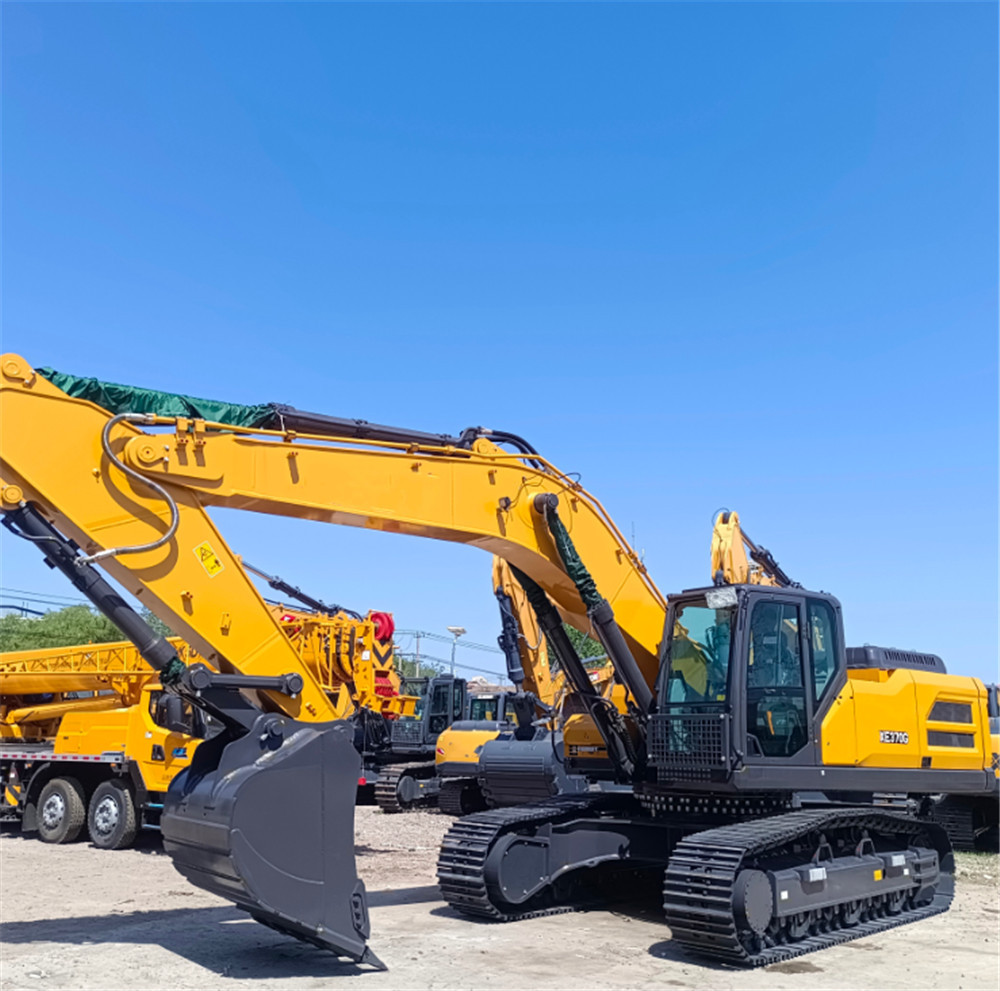

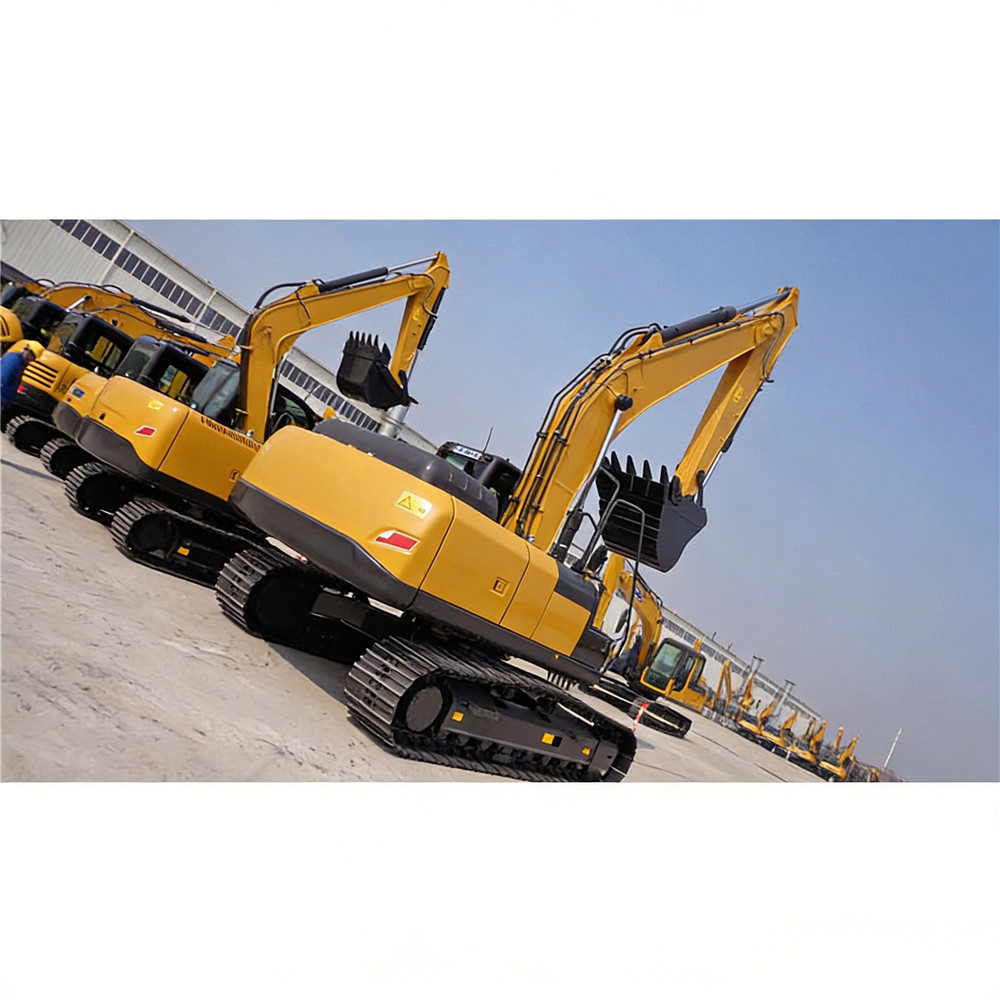

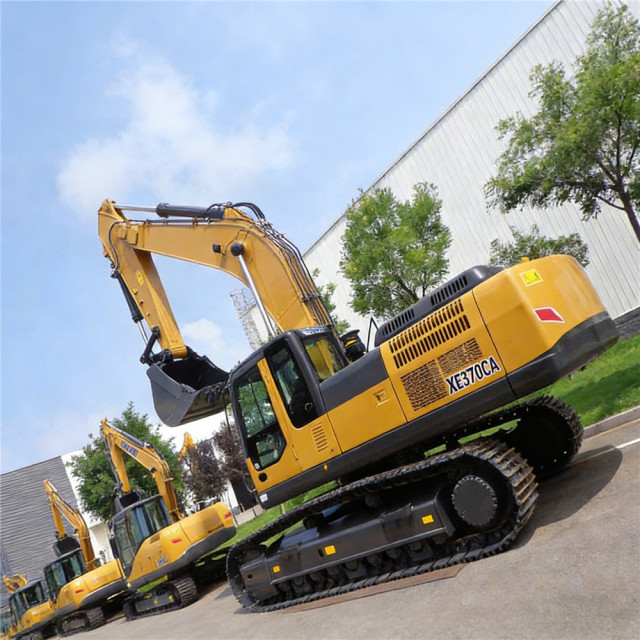

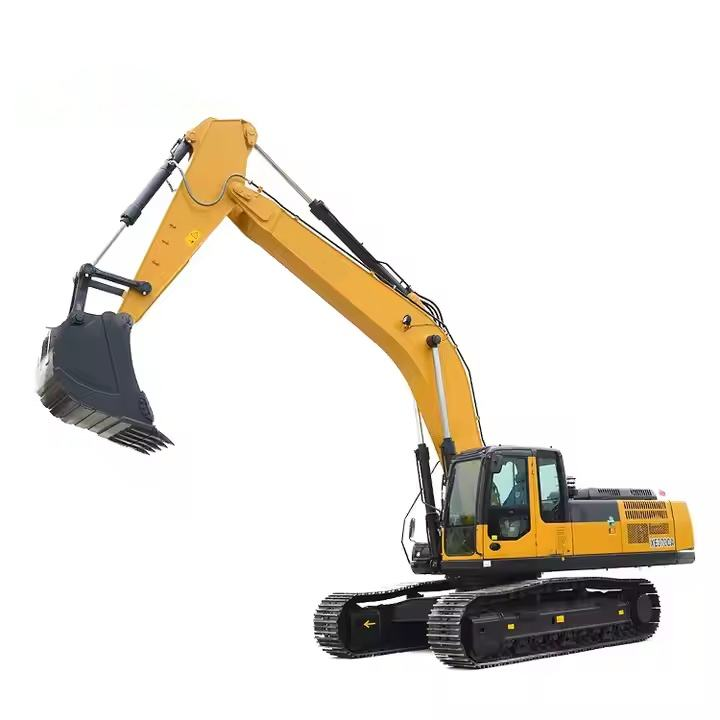

XE370CA
New cab enhances comfort and safety
Operating weight ( kg ) : 36800
Bucket capacity ( m³ ) : 1.8
Rated power ( kW ) : 212
* Widely used for small and medium-sized mine construction, municipal projects, water conservancy, highway and bridge construction, and other projects.
* New Pressurized Cabin, comprehensive improvement in comfort and safety, with high power automatic hot and cold AC system, enlarged suspension seat, 8-inch instrument panel with touch screen.
* Newly upgraded three-stage fuel filtration system, better oil adaptability.
* High-power Isuzu engine, Electronic controlled high-pressure common rail injection technology, fuel utilization increased by 5%.
* Multiple equipment configurations, standard type (SD), large working capacity type (BE), breaking type (BK), providing optimal solutions.
|
Item contents |
Unit |
Parameters |
|
Working range |
|
|
|
L1 Maximum reach |
mm |
10600 |
|
L2 Maximum reach at GRP |
mm |
10390 |
|
L3 Maximum digging height |
mm |
10060 |
|
L4 Maximum unloading height |
mm |
6960 |
|
L5 Minimum unloading height |
mm |
3195 |
|
L6 8 ft. level floor digging depth |
mm |
6640 |
|
L7 Maximum vertical digging depth |
mm |
4555 |
|
L8 Maximum digging depth |
mm |
6850 |
|
L9 Minimum swing radius |
mm |
4425 |
|
Operating weight |
kg |
36800 |
|
Engine |
|
|
|
Engine brand/model |
|
/AE-6HK1XWSC-02 |
|
Rated power/rpm |
kW/rpm |
212/2000 |
|
Direct injection |
|
|
|
Electric injection |
|
|
|
4-stroke |
|
|
|
Water-cooled |
|
|
|
Turbocharged |
|
|
|
Air-to-Air intercooling |
|
|
|
Stroke |
mm |
125 |
|
Cylinder bore |
mm |
115 |
|
Number of cylinders |
|
6 |
|
Maximum torque/rpm |
N·m/rpm |
1080/1500 |
|
Displacement |
|
7.79 |
|
Main Performance |
||
|
Travel speed (high/low) |
km/h |
5.4/3.2 |
|
Swing speed |
r/min |
8 |
|
Maximum swing torque |
kN·m |
153 |
|
Gradeability |
- |
35°（70%） |
|
Ground specific pressure |
kPa |
85 |
|
Bucket digging force (SAE) |
kN |
275 |
|
Bucket digging force (ISO) |
kN |
300 |
|
Arm digging force (SAE) |
kN |
251 |
|
Arm digging force (ISO) |
kN |
261 |
|
Track |
||
|
Standard track shoe width |
mm |
600 |
|
Number of track shoes (per side) |
- |
50 |
|
Number of track roller (per side) |
- |
9 |
|
Number of track carrier roller (per side) |
- |
2 |
|
Standard |
||
|
Length of boom |
mm |
6900 |
|
Length of arm |
mm |
2550 |
|
Bucket capacity |
m³ |
2.8 |
|
|
|
|
|
|
|
|
