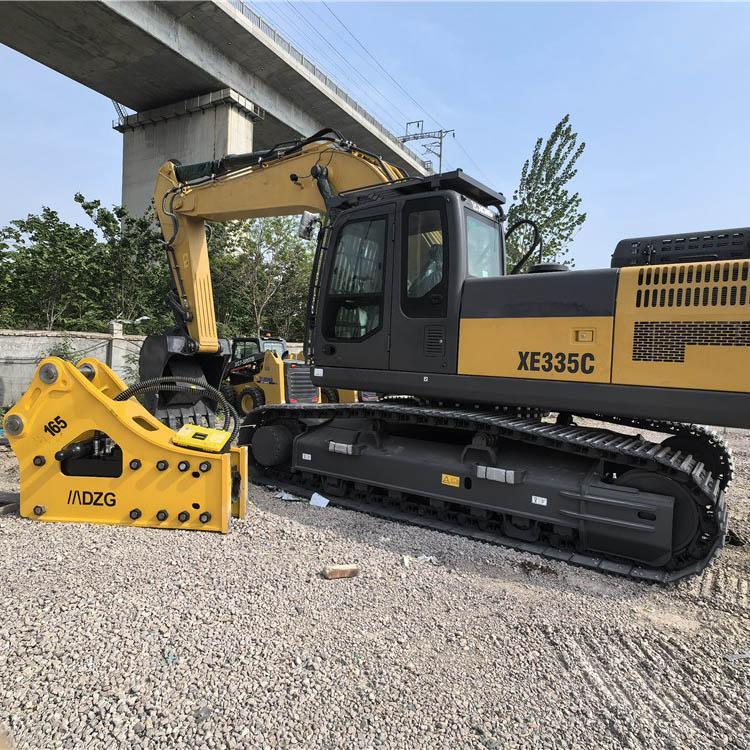

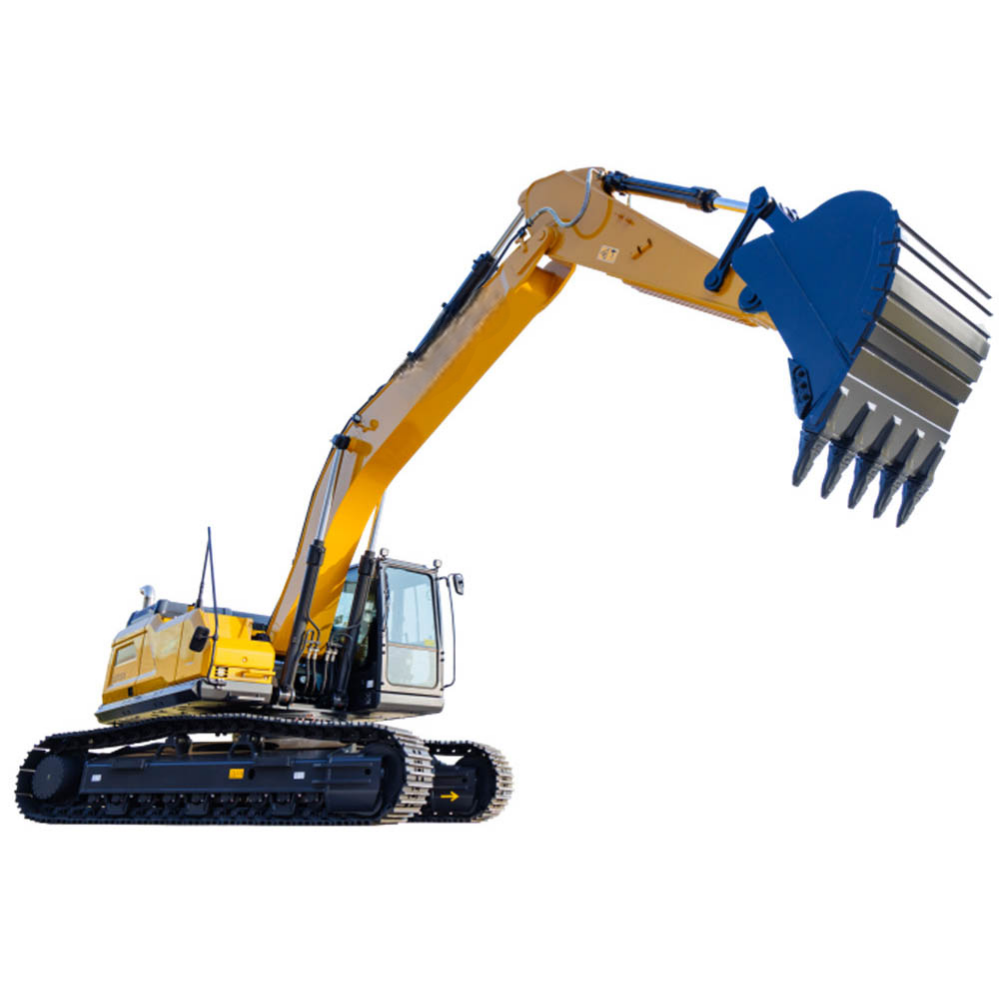

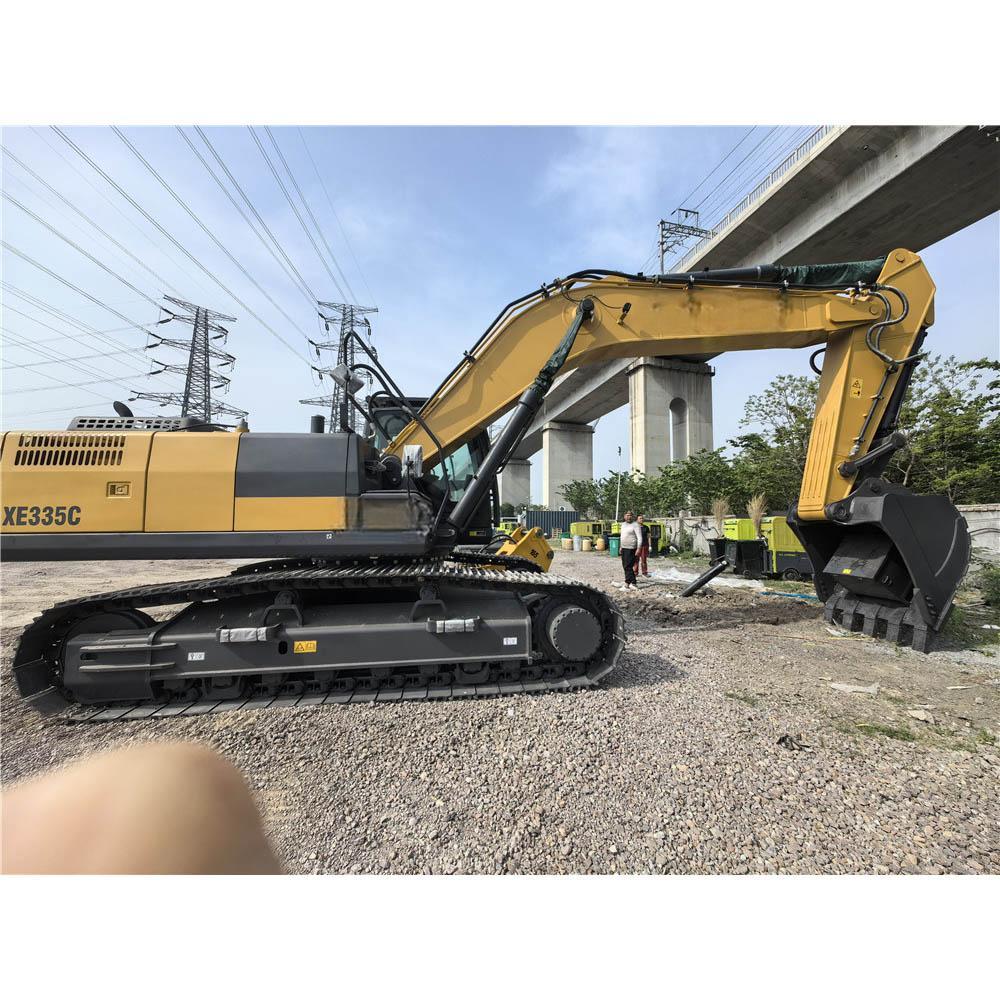

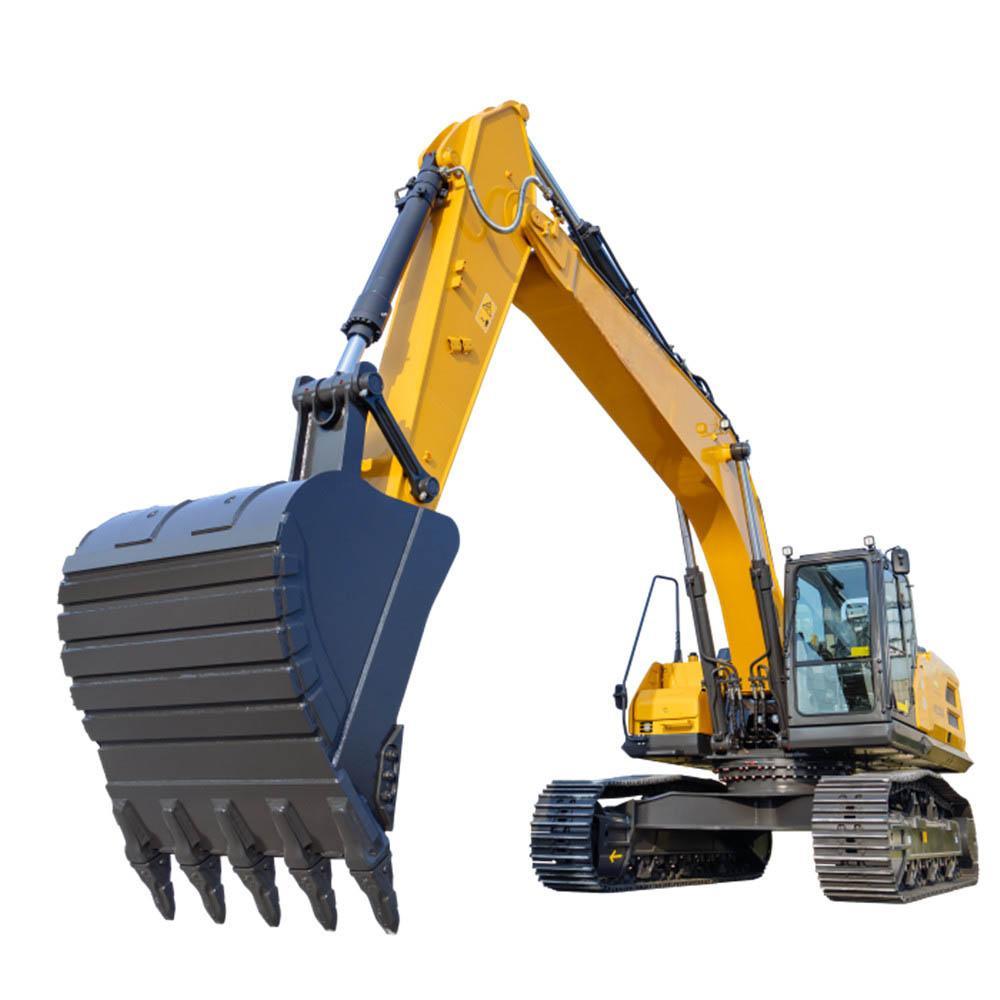

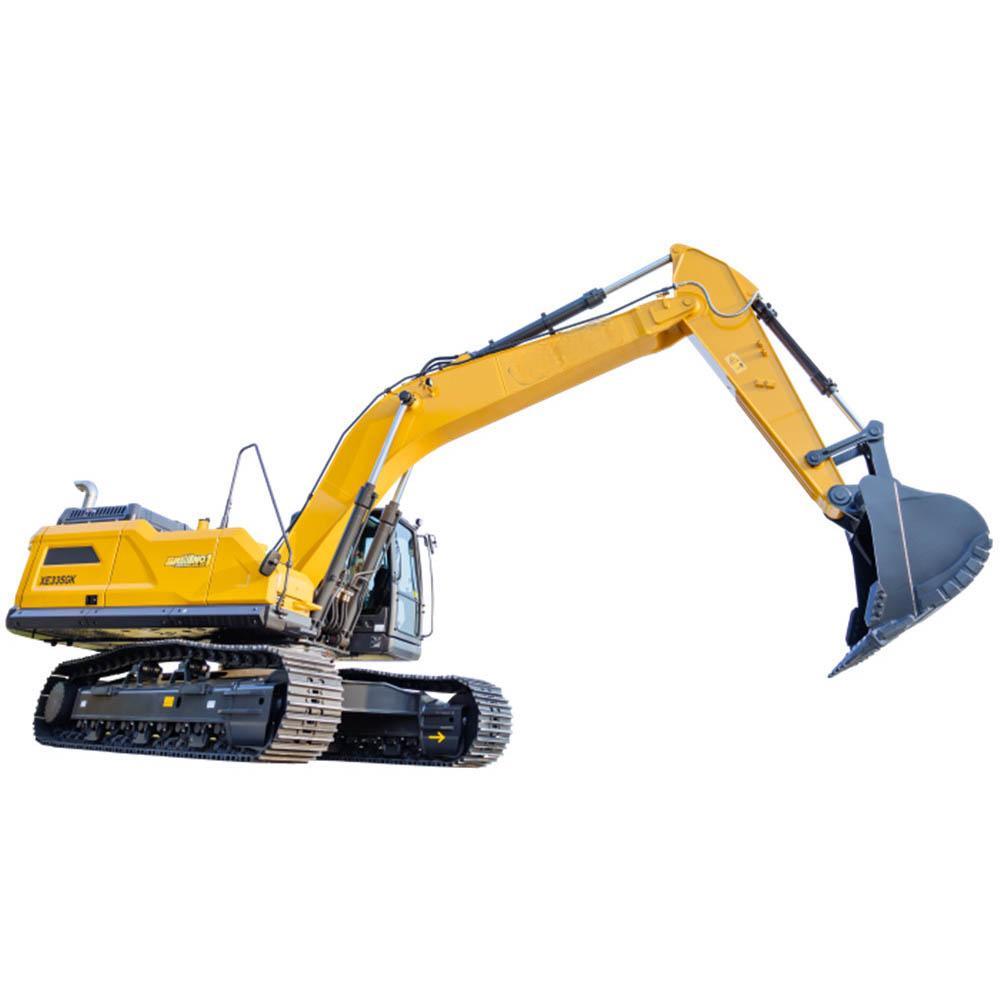

XE335G
Positive pressure cab, comfortable and safe.
Operating weight ( kg ) : 33500
Bucket capacity ( m³ ) : 1.6
Rated power ( kW ) : 212
* Widely used for irrigation and water conservancy, river dredging, municipal construction and small mine construction.
* New Pressurized Cabin, comprehensive improvement in comfort and safety, with high power automatic hot and cold AC system, enlarged suspension seat, 8-inch instrument panel with touch screen.
* The high-power Isuzu engine achieves precise matching with the hydraulic system, reducing fuel consumption by more than 5%.
* Three-stage fuel filtration system, better oil adaptability.
* Positive Flow Control System, large displacement main pump, fast response, high output efficiency, good operation sensitivity.
|
Item contents |
Unit |
Parameters |
|
Working range |
||
|
L1 Maximum reach |
mm |
10420 |
|
L2 Maximum reach at GRP |
mm |
10222 |
|
L3 Maximum digging height |
mm |
10174 |
|
L4 Maximum unloading height |
mm |
7065 |
|
L5 8 ft. level floor digging depth |
mm |
6568 |
|
L6 Maximum vertical digging depth |
mm |
5010 |
|
L7 Maximum digging depth |
mm |
6725 |
|
L8 Minimum swing radius |
mm |
4125 |
|
Item contents |
Unit |
Parameters |
|
Operating weight |
kg |
33500 |
|
Engine |
||
|
Engine brand/model |
- |
suzu/AE-6HK1XWSC-02 |
|
Rated power/rpm |
kW/rpm |
212/2000 |
|
Direct injection |
- |
√ |
|
Electric injection |
- |
√ |
|
4-stroke |
- |
√ |
|
Water-cooled |
- |
√ |
|
Turbocharged |
- |
√ |
|
Air-to-Air intercooling |
- |
√ |
|
Stroke |
mm |
125 |
|
Cylinder bore |
mm |
115 |
|
Number of cylinders |
- |
6 |
|
Maximum torque/rpm |
N·m/rpm |
1080/1500 |
|
Displacement |
L |
7.79 |
|
Main performance |
||
|
Travel speed (high/low) |
km/h |
5.0/2.9 |
|
Swing speed |
r/min |
9.9 |
|
Maximum swing torque |
kN·m |
125 |
|
Gradeability |
- |
35°（70%） |
|
Ground specific pressure |
kPa |
67 |
|
Bucket digging force (SAE) |
kN |
39 |
|
Bucket digging force (ISO) |
kN |
263 |
|
Arm digging force (SAE) |
kN |
205 |
|
Arm digging force (ISO) |
kN |
225 |
|
Maximum traction force |
kN |
305 |
|
Track |
||
|
Standard track shoe width |
mm |
600 |
|
Number of track shoes (per side) |
- |
49 |
|
Number of track roller (per side) |
- |
9 |
|
Number of track carrier roller (per side) |
- |
2 |
|
Standard |
||
|
Length of boom |
mm |
6400 |
|
Length of arm |
mm |
2670 |
|
Bucket capacity |
m³ |
1.8 |
