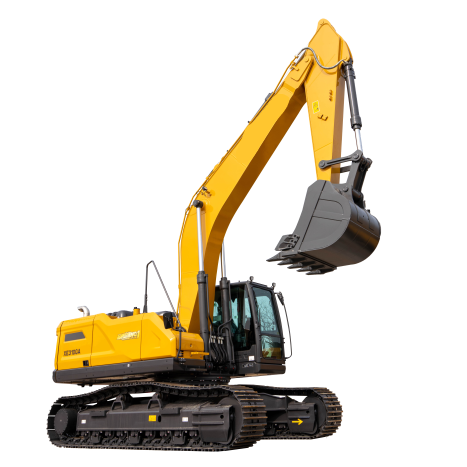

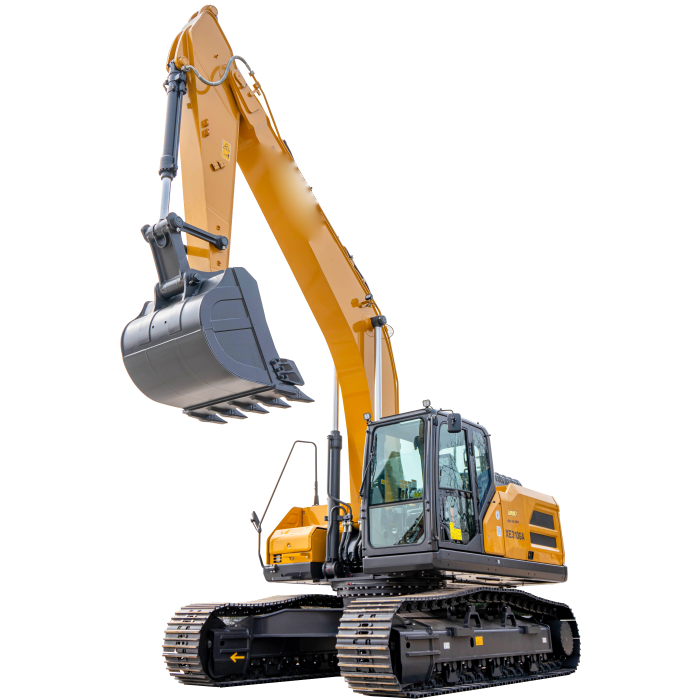

XE310G
Suitable for mining, quarrying, highway bridges, and construction.
Operating weight ( kg ) : 31500
Bucket capacity ( m³ ) : 1.5
Rated power ( kW ) : 169
* XE310G crawler excavator is suitable for various projects such as mining, quarrying, highway bridges, and building construction.
* Equipped with Cummins engine,it provides strong power and fuel economy to meet the needs of high-altitude construction.
* It adopts electronically controlled positive flow hydraulic system and PIC feed forward intelligent control technology to improve operating efficiency and control comfort.
* The new ultra-large view cab and digital service support ensure convenient operation and intelligent maintenance.
|
Item contents |
Unit |
Parameters |
|
L1 Maximum reach |
mm |
10520 |
|
L2 Maximum reach at GRP |
mm |
10222 |
|
L3 Maximum digging height |
mm |
10170 |
|
L4 Maximum unloading height |
mm |
7056 |
|
L5 Minimum unloading height |
mm |
2782 |
|
L6 8 ft. level floor digging depth |
mm |
6560 |
|
L7 Maximum vertical digging depth |
mm |
5010 |
|
L8 Maximum digging depth |
mm |
6725 |
|
L9 Minimum swing radius |
mm |
4125 |
|
Operating weight |
|
31500 |
|
Engine |
|
|
|
Engine brand/model |
|
QSB6.7 |
|
Rated power/rpm |
kW/rpm |
169/2050 |
|
Direct injection |
|
|
|
Electric injection |
|
|
|
4-stroke |
|
|
|
Water-cooled |
|
|
|
Turbocharged |
|
|
|
Air-to-Air intercooling |
|
|
|
Stroke |
mm |
124 |
|
Cylinder bore |
mm |
107 |
|
Number of cylinders |
|
|
|
Maximum torque/rpm |
N·m/rpm |
895/1200 |
|
Displacementnt |
|
6.7 |
|
Main performance |
||
|
Travel speed (high/low) |
km/h |
5.2/3.3 |
|
Swing speed |
r/min |
10.6 |
|
Gradeability |
- |
35°（70%） |
|
Ground specific pressure |
kPa |
53 |
|
Bucket digging force (ISO) |
kN |
185 |
|
Arm digging force (ISO) |
kN |
129 |
|
Maximum traction force |
kN |
220 |
|
Track |
||
|
Standard track shoe width |
mm |
600 |
|
Number of track shoes (per side) |
- |
49 |
|
Number of track roller (per side) |
- |
9 |
|
Number of track carrier roller (per side) |
- |
2 |
|
Standard |
|
|
|
Length of boom |
mm |
- |
|
Length of arm |
mm |
- |
|
Bucket capacity |
m³ |
1.5 |
