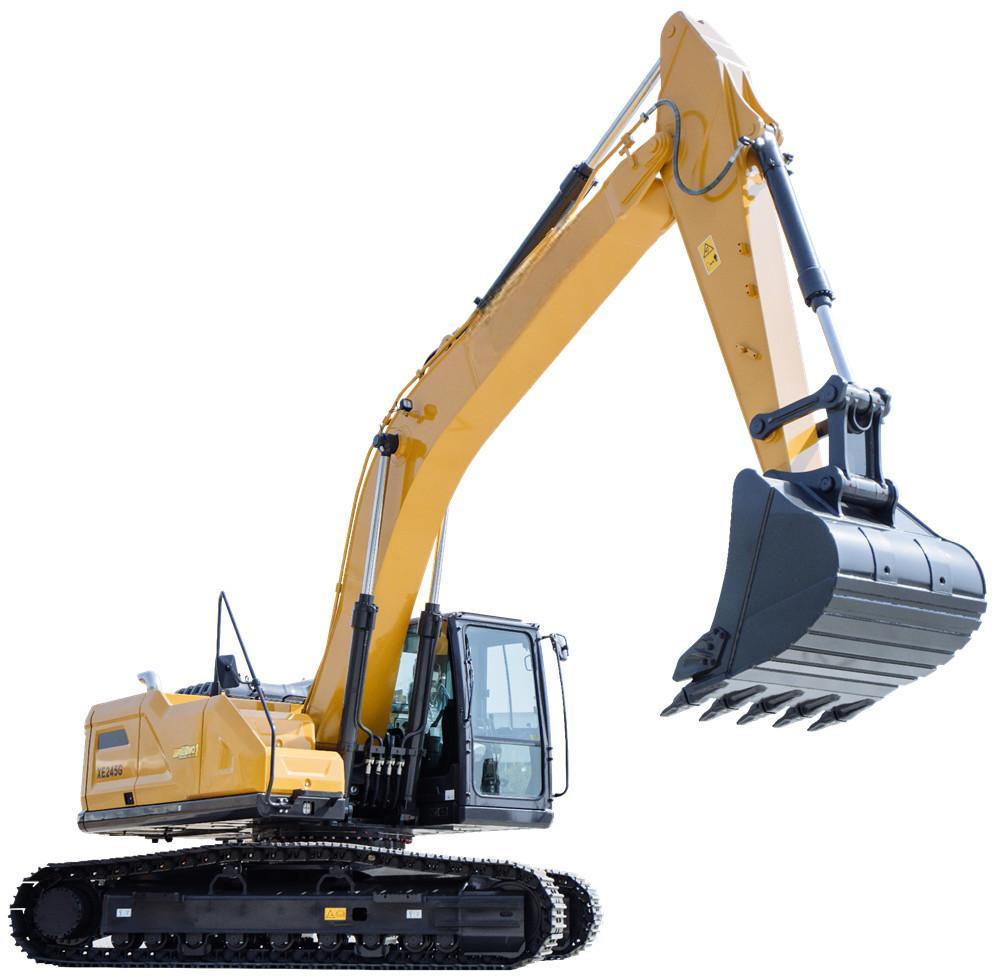

XE245G
Electronic fuel injection engine, strong power.
Operating weight ( kg ) : 25800
Bucket capacity ( m³ ) : 1.3
Rated power ( kW ) : 150
* XE245G excavator is suitable for medium and large earthwork projects, municipal construction, mining operations and other working conditions.
* Equipped with CUMMINS electronic fuel injection engine, it provides strong power, optimizes fuel efficiency and oil adaptability.
* Electronically controlled positive flow hydraulic system and intelligent control technology improve working efficiency and operating comfort.
* The new anti-rollover cab design enhances sealing and reduces noise, providing a safer and more comfortable operating environment.
|
Item contents |
Unit |
Parameters |
|
L4 Maximum unloading height |
mm |
7120 |
|
L5 Minimum unloading height |
mm |
2840 |
|
L6 8 ft. level floor digging depth |
mm |
6750 |
|
L7 Maximum vertical digging depth |
mm |
5445 |
|
L8 Maximum digging depth |
mm |
6910 |
|
L9 Minimum swing radius |
mm |
3450 |
|
L4 Maximum unloading height |
mm |
7120 |
|
Item contents |
Unit |
Parameters |
|
Operating weight |
kg |
25800 |
|
Engine |
|
|
|
Engine brand/model |
|
QSB7 |
|
Rated power/rpm |
kW/rpm |
150/2050 |
|
Direct injection |
- |
√ |
|
Electric injection |
- |
√ |
|
4-stroke |
- |
√ |
|
Water-cooled |
- |
√ |
|
Turbocharged |
- |
√ |
|
Air-to-Air intercooling |
- |
√ |
|
Stroke |
mm |
|
|
Cylinder bore |
mm |
|
|
Number of cylinders |
- |
|
|
Maximum torque/rpm |
N·m/rpm |
|
|
Displacementnt |
L |
|
|
Travel speed (high/low) |
km/h |
5.2/3.1 |
|
Swing speed |
r/min |
10.5 |
|
Gradeability |
kPa |
56.5 |
|
Ground specific pressure |
kN |
206 |
|
Bucket digging force (SAE) |
kN |
145 |
|
Arm digging force (SAE) |
kN |
257 |
|
Maximum traction force |
kPa |
56.5 |
|
Standard track shoes width |
mm |
600 |
|
Number of track shoes (per side) |
- |
48 |
|
Number of track roller (per side) |
- |
9 |
|
Number of track carrier roller (per side) |
- |
2 |
|
Standard |
|
|
|
Length of boom |
mm |
6150 |
|
Length of arm |
mm |
2900 |
|
Bucket capacity |
m³ |
1.5 |
