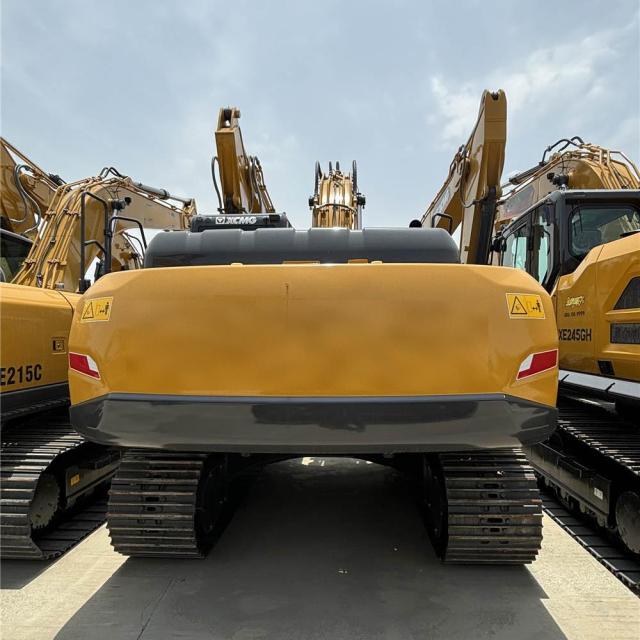

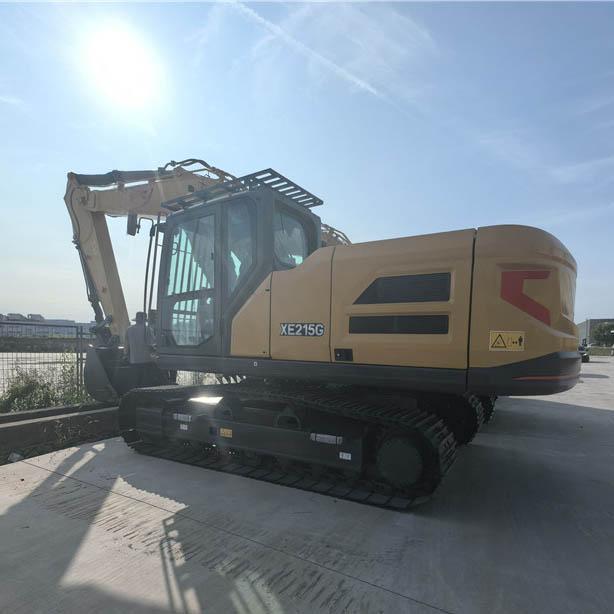

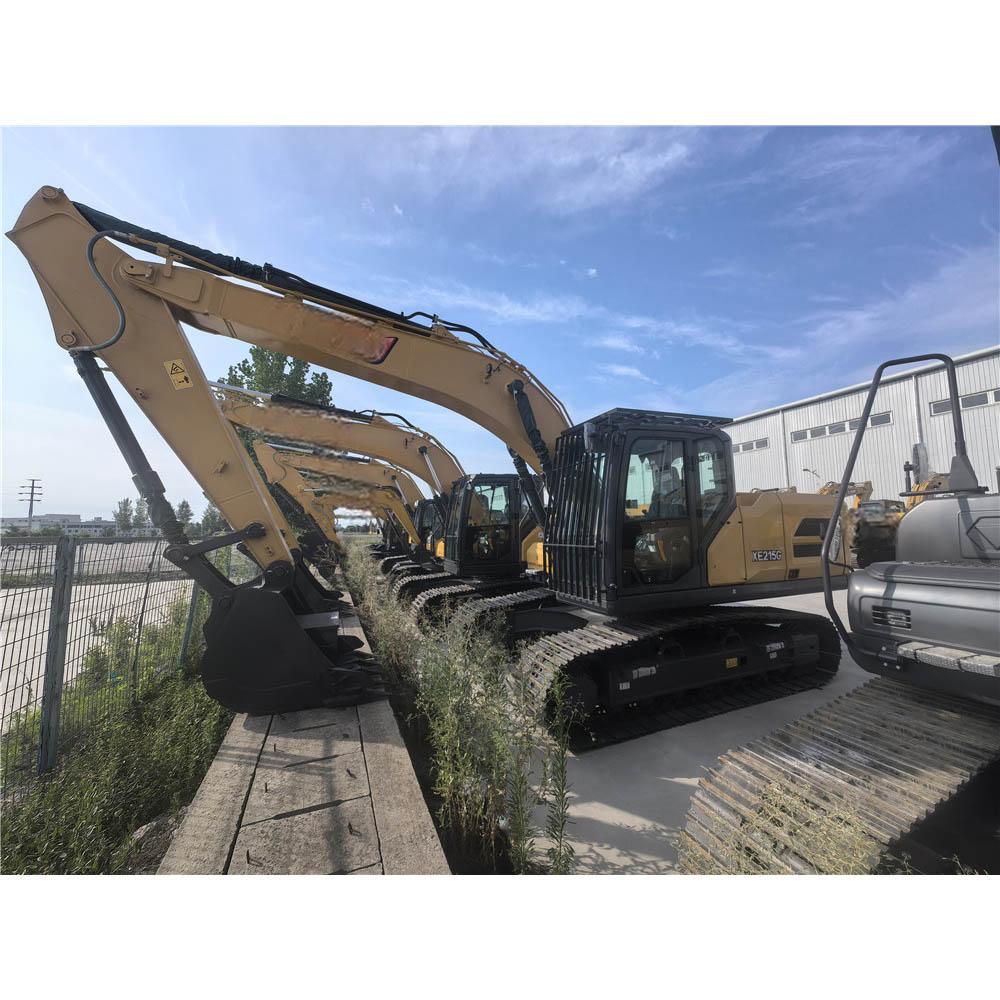

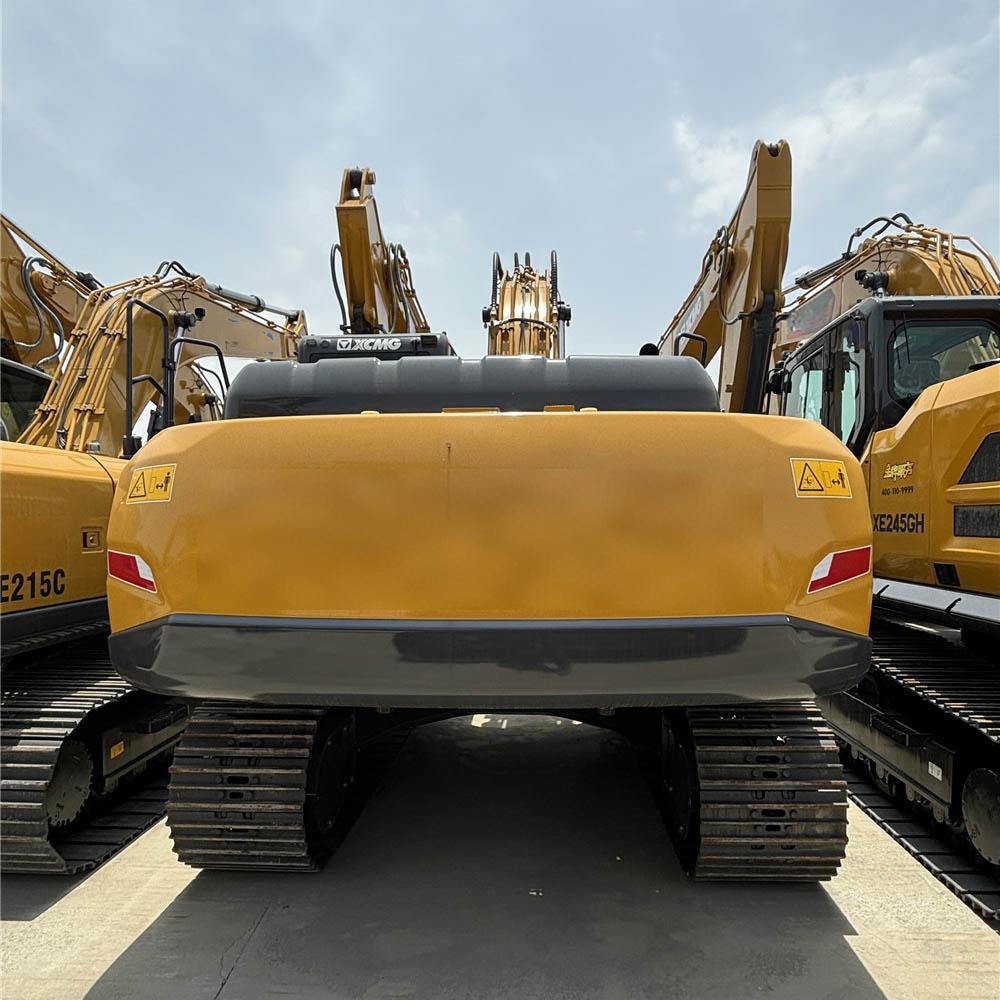

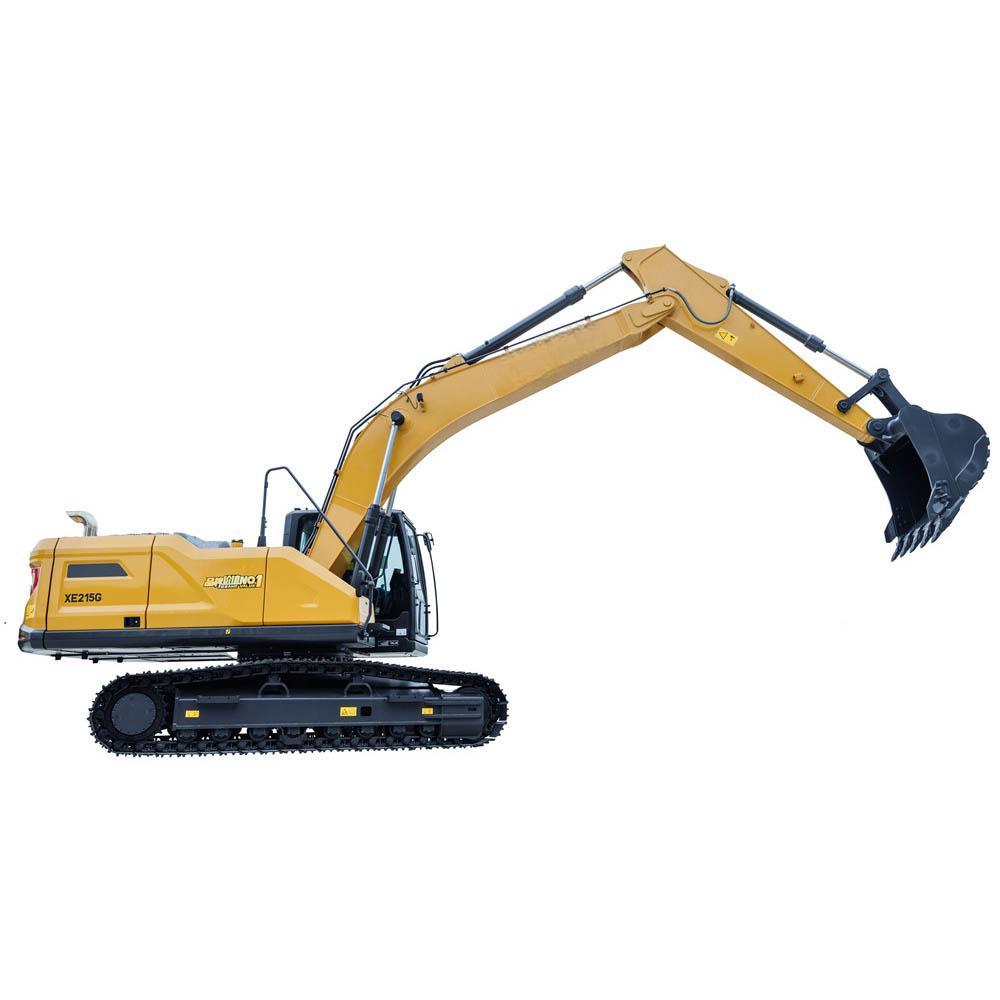

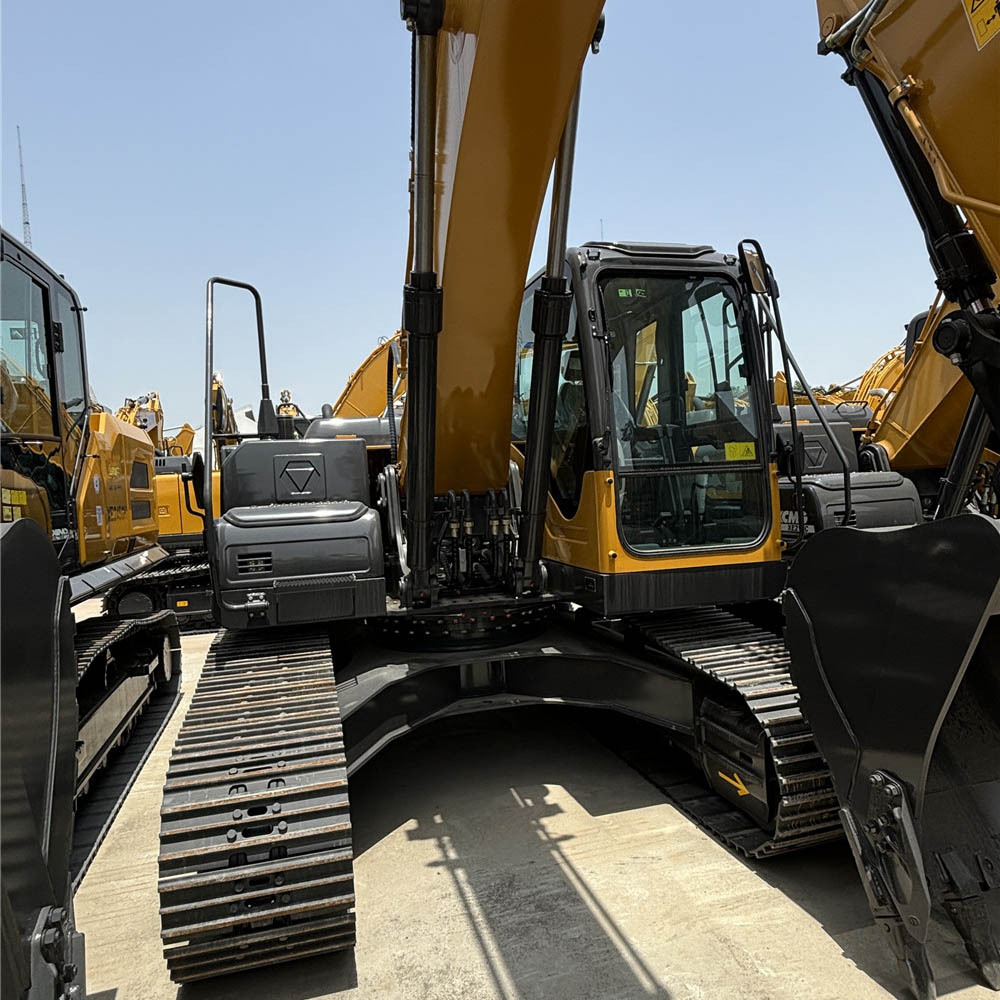

XE215C
Positive pressure cab, safety and comfort
Operating weight ( kg ) : 21700
Bucket capacity ( m³ ) : 1.0
Rated power ( kW ) : 128.5
* Widely used for irrigation and water conservancy, river dredging, municipal construction and small mine construction.
* New Pressurized Cabin, comprehensive improvement in comfort and safety, with high power automatic hot and cold AC system, enlarged suspension seat, 8-inch instrument panel with touch screen.
* High-power Six-cylinder Engine, with sufficient power margin, convenient maintenance, and good oil adaptability.
* Positive Flow Control System, large displacement main pump, fast response, high output efficiency, good operation sensitivity.
| Item contents | Unit | Parameters |
| Operating weight | kg | 21700 |
| Engine | ||
| Engine brand/model | Isuzu/CC-6BG1TRP/Cummins/QSB7 | |
| Rated power/rpm | kW/rpm | 128.5/2100 |
| Direct injection | ||
| 4-stroke | ||
| Water-cooled | ||
| Turbocharged | ||
| Air-to-Air intercooling | ||
| Stroke | mm | 125 |
| Cylinder bore | mm | 105 |
| Number of cylinders | 6 | |
| Maximum torque/rpm | N·m/rpm | 637.9/1800 |
| Main performance | ||
| Travel speed (high/low) | km/h | 5.5/3.3 |
| Swing speed | r/min | 11.8 |
| Maximum swing torque | kN·m | 67 |
| Gradeability | - | 35°（70%） |
| Ground specific pressure | kPa | 48.2 |
| Bucket digging force (ISO) | kN | 149 |
| Arm digging force (ISO) | kN | 110 |
| Maximum traction force | kN | 184 |

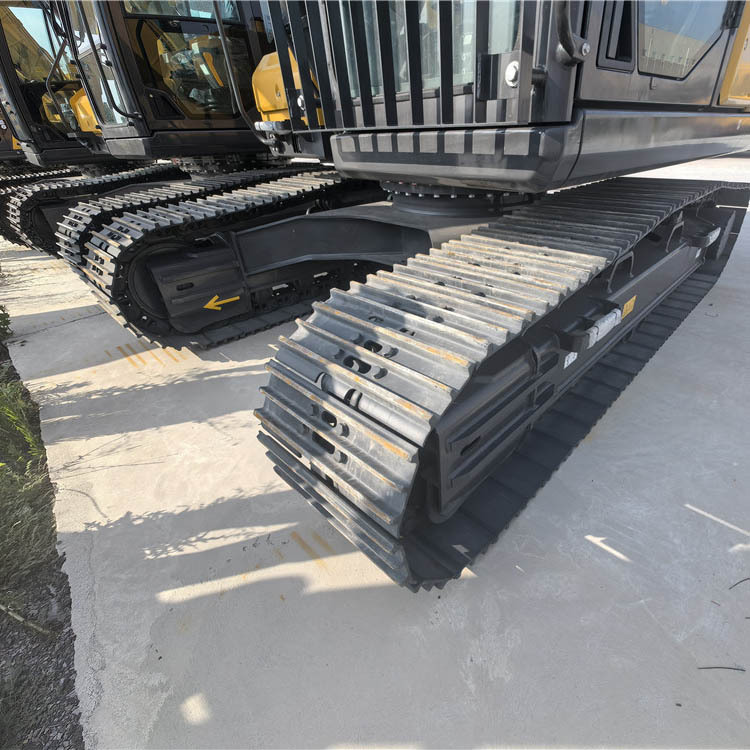

| Track | ||
| Standard track shoe width | mm | 600 |
| Number of track shoes (per side) | - | 47 |
| Number of track roller (per side) | - | 8 |
| Number of track carrier roller (per side) | - | 2 |
| Standard | ||
| Length of boom | mm | - |
| Length of arm | mm | - |
| Bucket capacity | m³ | 1.0/1.1 |
