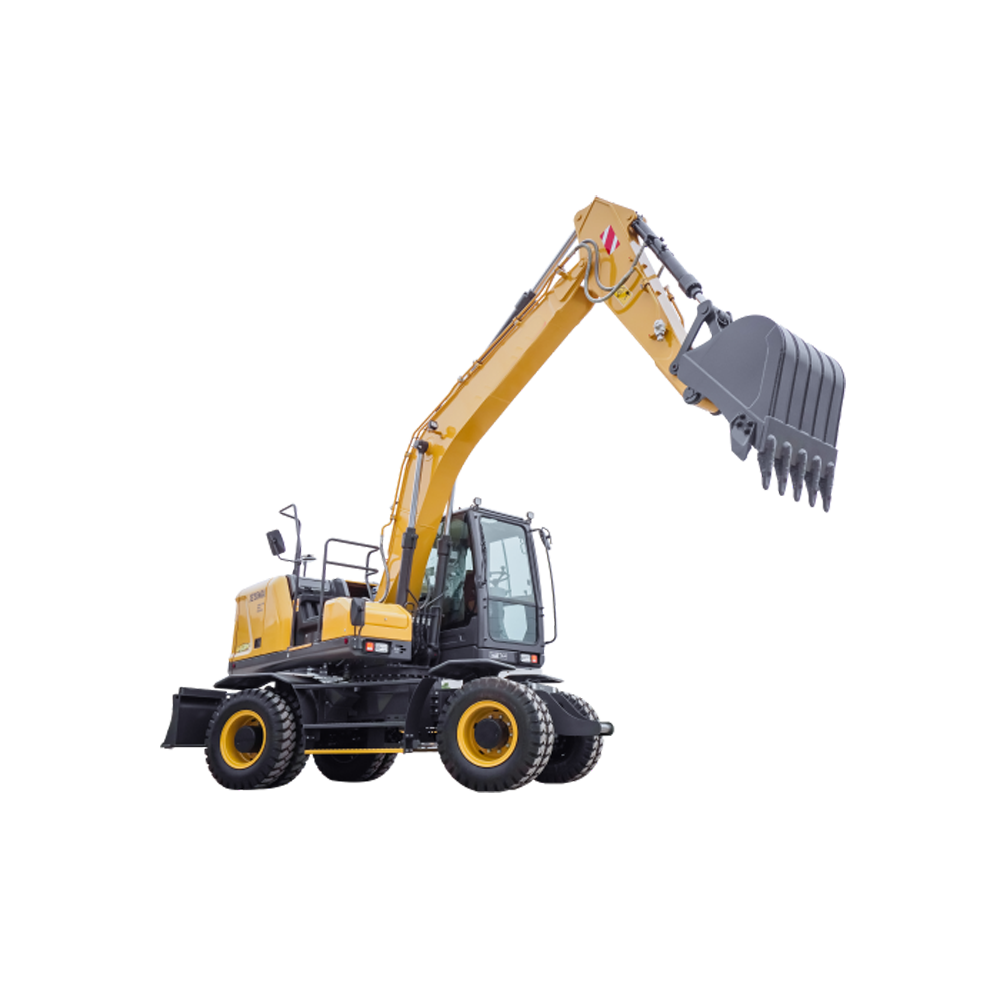

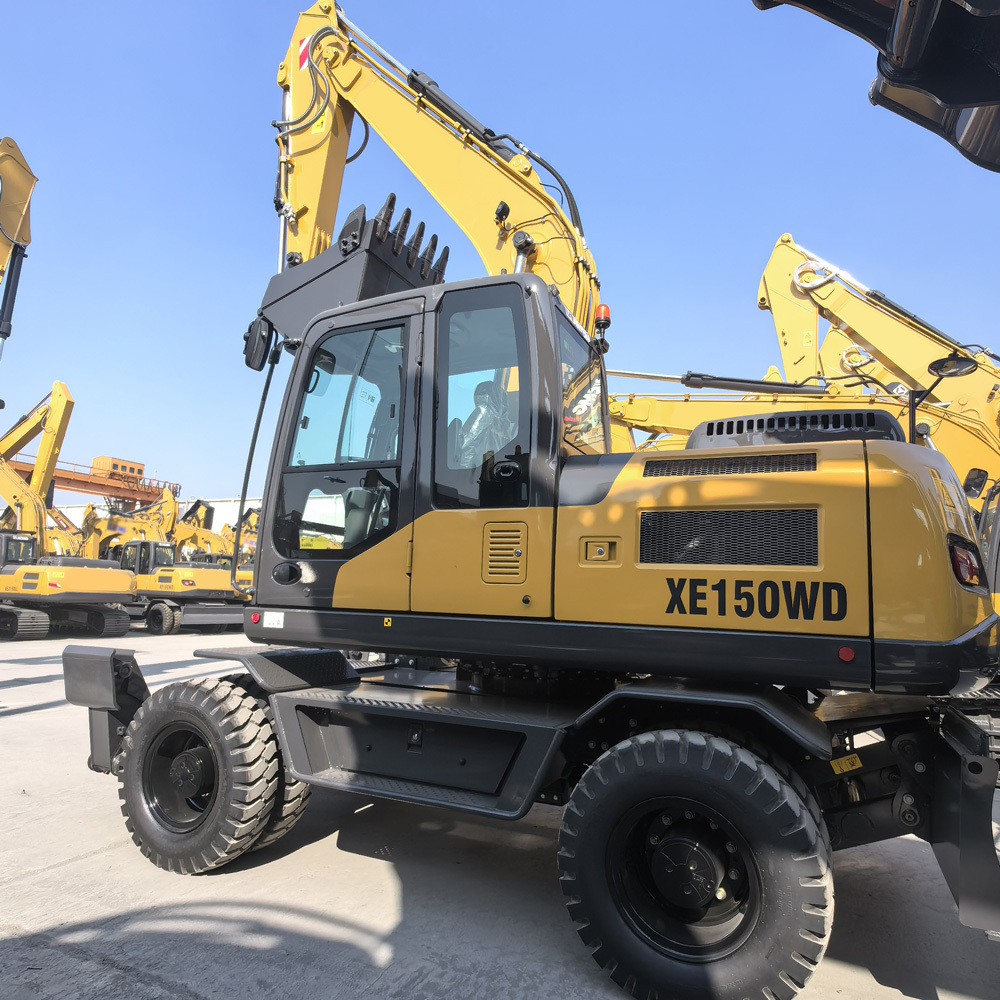

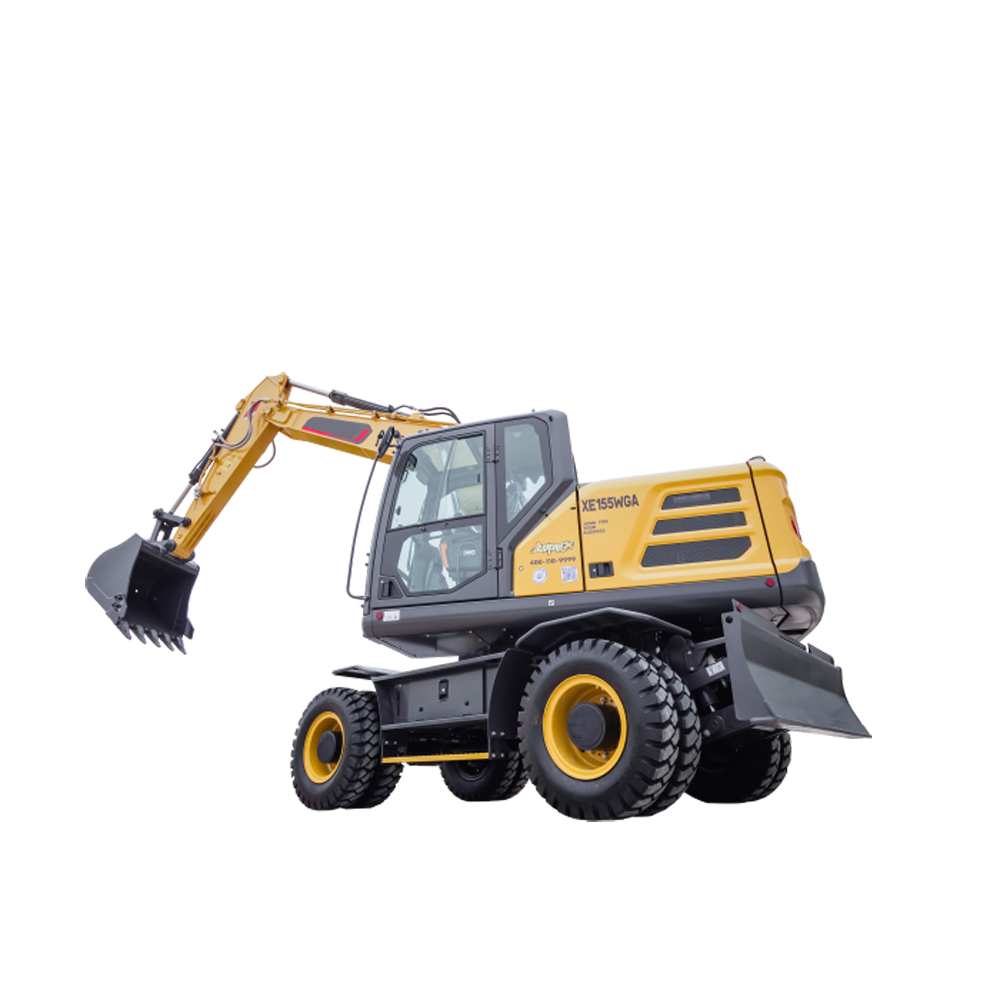

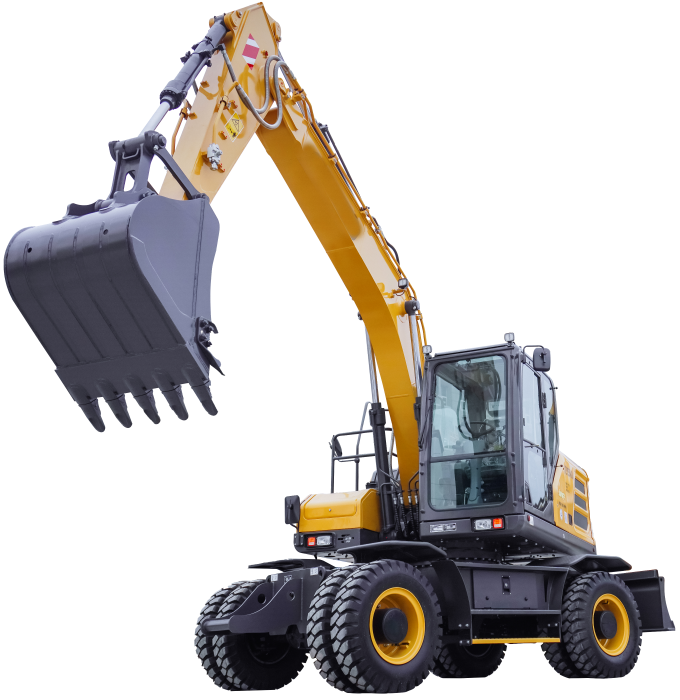

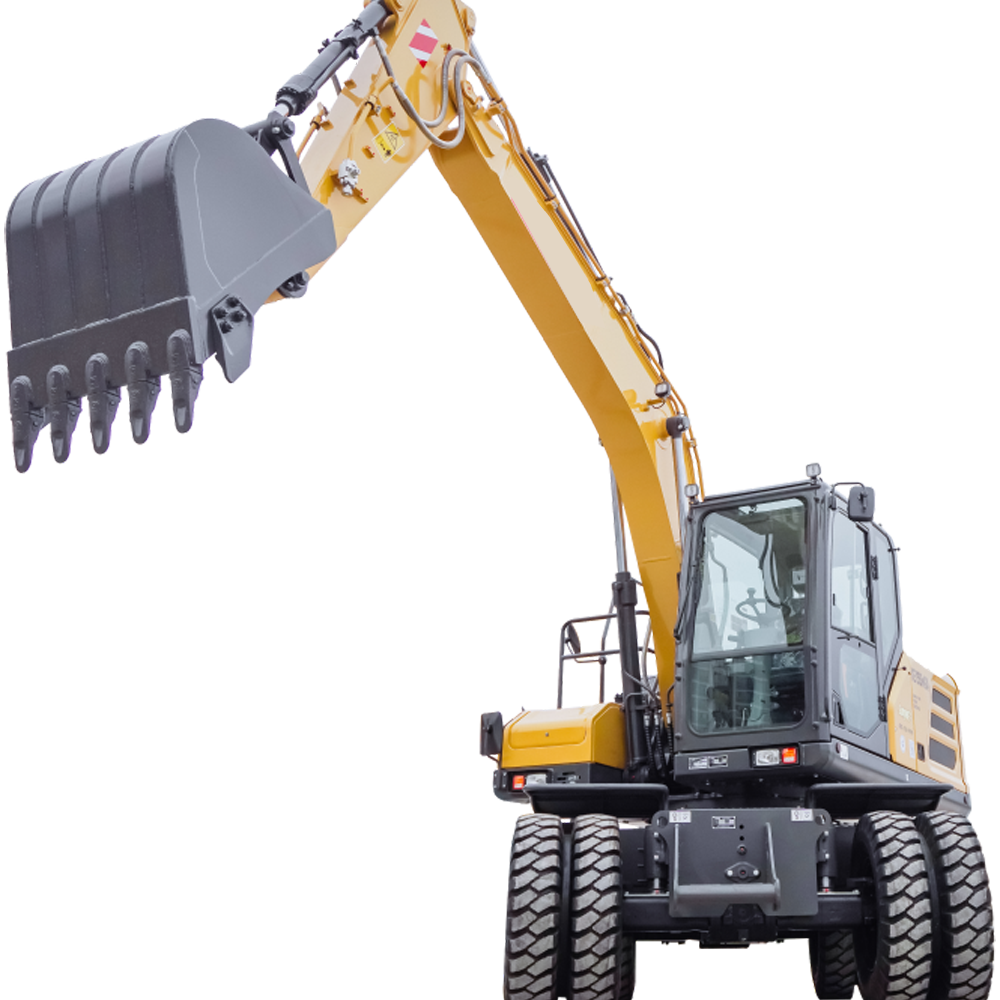

XE150WD XE150W 15 ton Wheel Digger Mobile Excavator With 0.86CBM Bucket for Sale
The XE150WD wheeled hydraulic excavator is capable of handling various working conditions. The product boasts excellent stability and high maneuverability, which is sufficient to cope with various working environments. The product's dimensions comply with road regulations and transportation requirements. The product ensures customers' comprehensive benefits and the lowest operating costs by applying a series of advanced industry technologies and designing numerous practical functions.
| Model | Unit | XE150WD | ||
| Operating weight | Kg | 14000 | ||
| Bucket capacity | m³ | 0.58 | ||
| Engine | Model | / | CUMMINS QSB4.5 | |
| Direct injection | / | √ | ||
| Four strokes | / | √ | ||
| Water cooled | / | √ | ||
| Turbocharged | / | √ | ||
| Air to air intercooler | / | √ | ||
| Number of cylinders | / | 4 | ||
| Rated power/speed | kw/rpm | 104/2000 | ||
| Maximum torque/speed | N.m | 586/1500 | ||
| Piston displacement | L | 4.5 | ||
| Travel speed（H/L) | km/h | Nov-35 | ||
| Main performance | Swing speed | r/min | 12 | |
| Gradeability | ° | ≤35 | ||
| Ground pressure | kPa | / | ||
| Bucket digging force | kN | 95 | ||
| Arm digging force | kN | 72 | ||
| Maximum tractive force | kN | 77 | ||
| Main pump | / | 2 piston pump | ||
| Hydraulic system | Relief valve setting pressure | L/min | 2×160 | |
| Pressure of prime valve | bar | 314 | ||
| Travel system pressure | bar | 314 | ||
| Swing system pressure | bar | 250 | ||
| Pilot system pressure | bar | 39 | ||
| Fuel tank capacity | L | 250 | ||
| Oil Capacity | Hydraulic tank capacity | L | 135 | |
| Engine oil capacity | L | 11 | ||
| Appearance size | Overall length | mm | 7714 | |
| Overall width | mm | 2495 | ||
| Overall height | mm | 3180 | ||
| Counterweight clearance | mm | 1252 | ||
| Minimum ground clearance | mm | 380 | ||
| Minimum tail swing radius | mm | 2310 | ||
| Minimum turning radius | mm | 6500 | ||
| Wheel base | mm | 2800 | ||
| Tread width | mm | 296*2 | ||
| Width of platform | mm | 2490 | ||
| The distance from front axle to the rotary center | mm | 1700 | ||
| Engine hood height | mm | 2474 | ||
| Maximum digging reach | mm | 7780 | ||
| Working scope | Maximum ground digging radius | mm | 7570 | |
| Maximum digging height | mm | 8190 | ||
| Maximum dumping height | mm | 5855 | ||
| Maximum digging depth | mm | 4630 | ||
| Maximum depth cut for 8 ft level bottom | mm | 4325 | ||
| Maximum vertical wall digging depth | mm | 4150 | ||
| Maximum dozer lifting height | mm | 534 | ||
| Maximum dozer cutting depth | mm | 98 | ||
| Length of boom | mm | 4600 | ||
| Worker | Standard | Length of arm | mm | 2100 |
| Bucket capacity | m³ | 0.58 | ||
| Length of boom | m³ | / | ||
| Optional | Length of arm | m³ | 2500 | |
| Bucket capacity | m³ | 0.26~0.7 | ||
